Document Conventions
MES-3728 User’s Guide
6

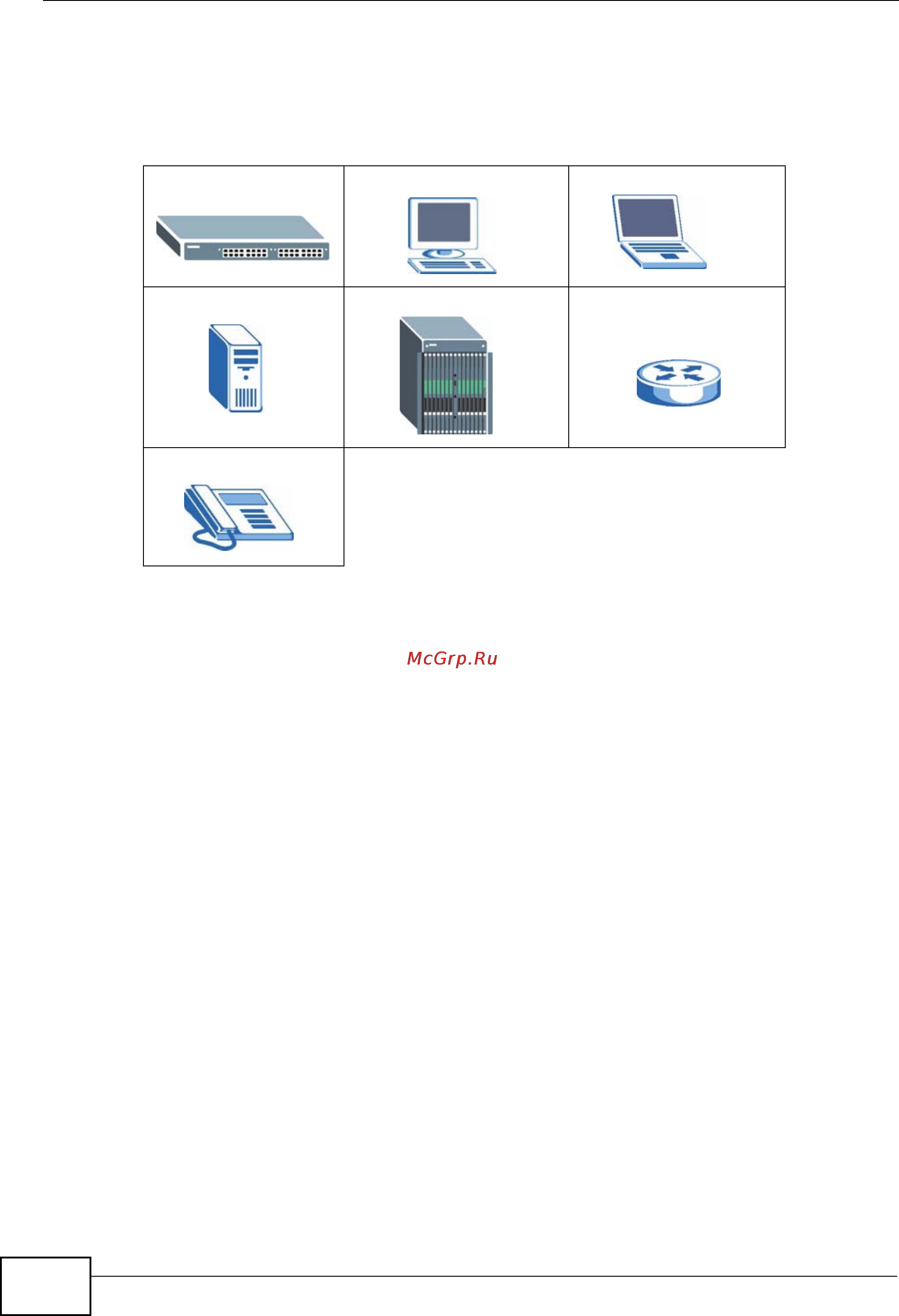

Icons Used in Figures
Figures in this User’s Guide may use the following generic icons. The Switch icon is
not an exact representation of your device.
The Switch Computer Notebook computer
Server DSLAM Router
Telephone
