Chapter 21 Policy Rule
MES-3728 User’s Guide
191
21.4 Policy Example
The figure below shows an example Policy screen where you configure a policy to
limit bandwidth and discard out-of-profile traffic on a traffic flow classified using
the Example classifier (refer to Section 20.4 on page 182).

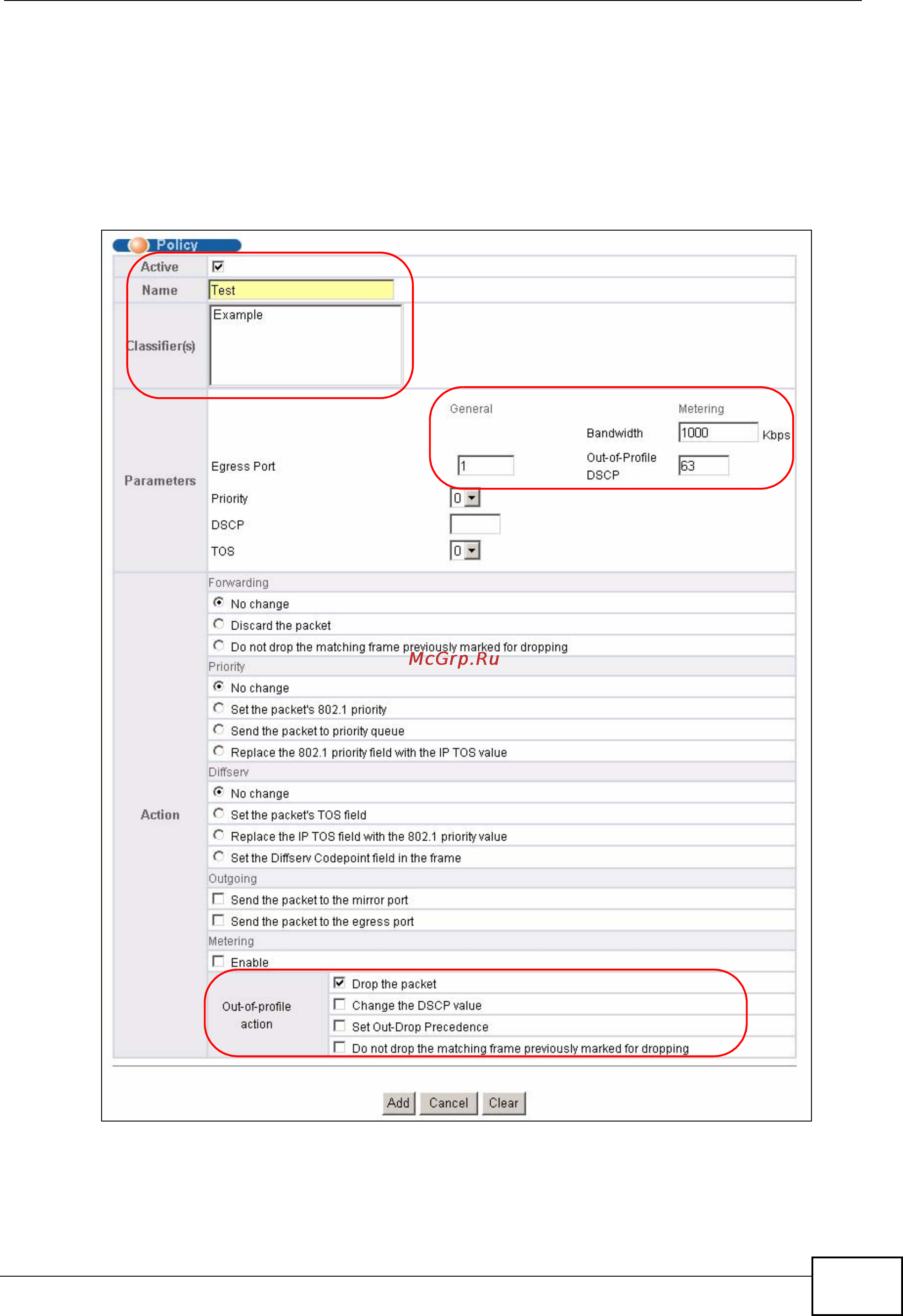

Figure 97 Policy Example
