Chapter 34 Access Control
MES-3728 User’s Guide
316
Click Management > Access Control > Logins to view the screen as shown
next.

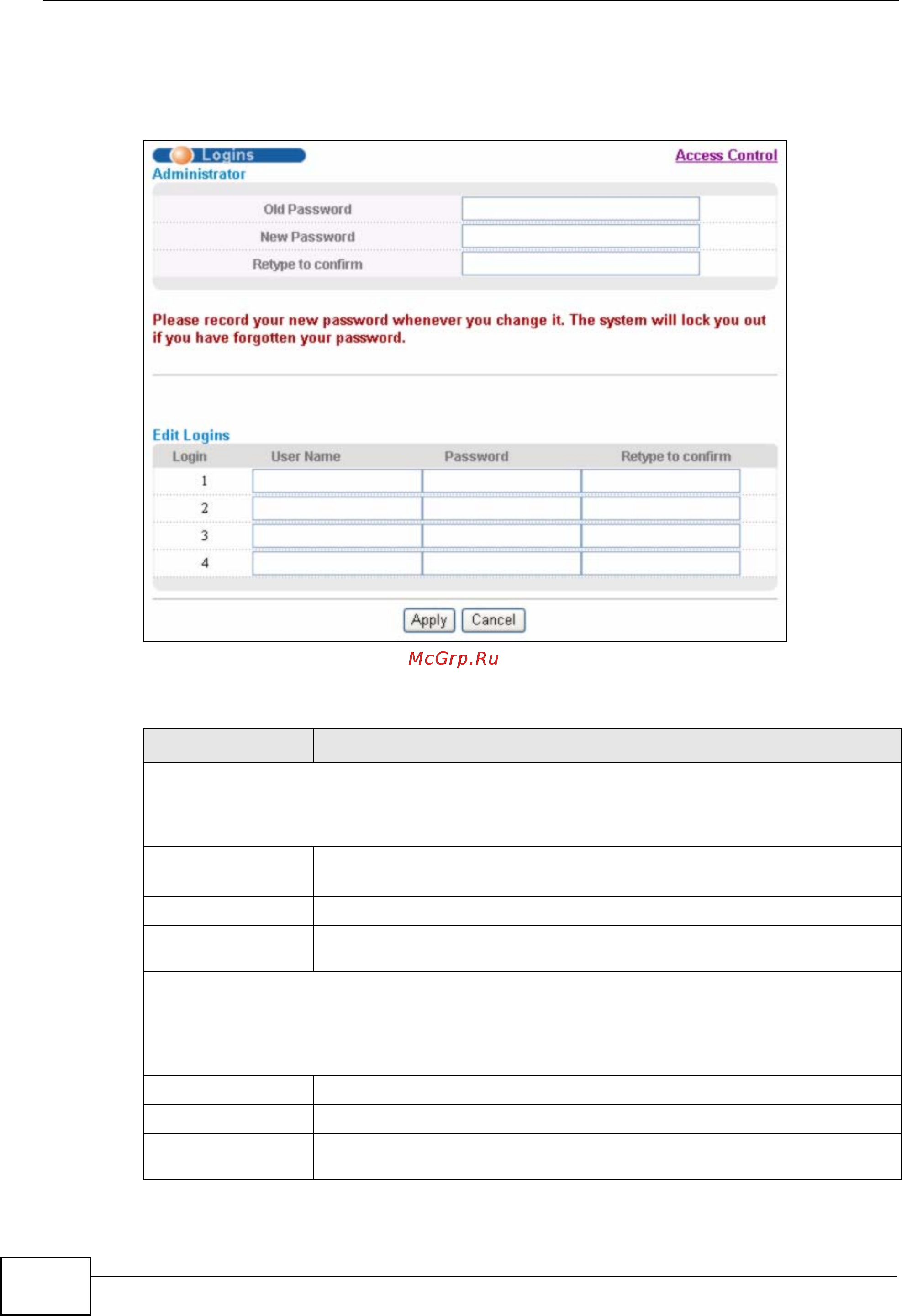

Figure 171 Management > Access Control > Logins
The following table describes the labels in this screen.
Table 110 Management > Access Control > Logins
LABEL DESCRIPTION
Administrator
This is the default administrator account with the “admin” user name. You cannot change
the default administrator user name. Only the administrator has read/write access.
Old Password Type the existing system password (1234 is the default password
when shipped).
New Password Enter your new system password.
Retype to
confirm
Retype your new system password for confirmation
Edit Logins
You may configure passwords for up to four users. These users have read-only access.
You can give users higher privileges via the CLI. For more information on assigning
privileges see the CLI Reference Guide.
User Name Set a user name (up to 32 ASCII characters long).
Password Enter your new system password.
Retype to
confirm
Retype your new system password for confirmation
