MES-3728 User’s Guide
275
CHAPTER 30
Static Route
This chapter shows you how to configure static routes.
30.1 Static Routing Overview
The Switch uses IP for communication with management computers, for example
using HTTP, Telnet, SSH, or SNMP. Use IP static routes to have the Switch respond
to remote management stations that are not reachable through the default
gateway. The Switch can also use static routes to send data to a server or device
that is not reachable through the default gateway, for example when sending
SNMP traps or using ping to test IP connectivity.
This figure shows a Telnet session coming in from network N1. The Switch sends
reply traffic to default gateway R1 which routes it back to the manager’s
computer. The Switch needs a static route to tell it to use router R2 to send traffic
to an SNMP trap server on network N2.

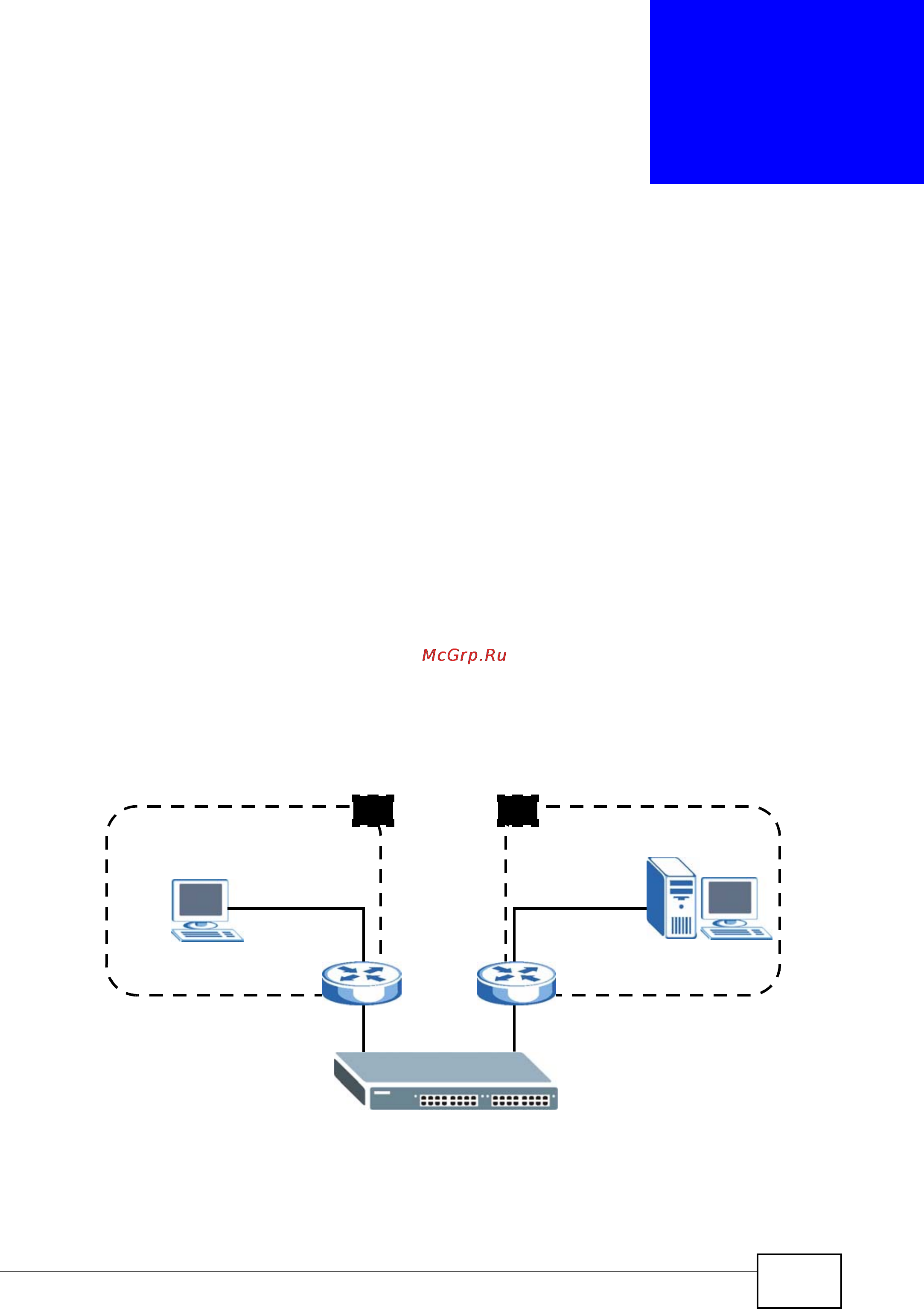

Figure 145 Static Routing Overview
R1
R2
N1
N2
SNMP
Telnet
