MES-3728 User’s Guide
327
CHAPTER 35
Diagnostic
This chapter explains the Diagnostic screen.
35.1 Diagnostic
Click Management > Diagnostic in the navigation panel to open this screen. Use
this screen to check system logs, ping IP addresses or perform port tests.

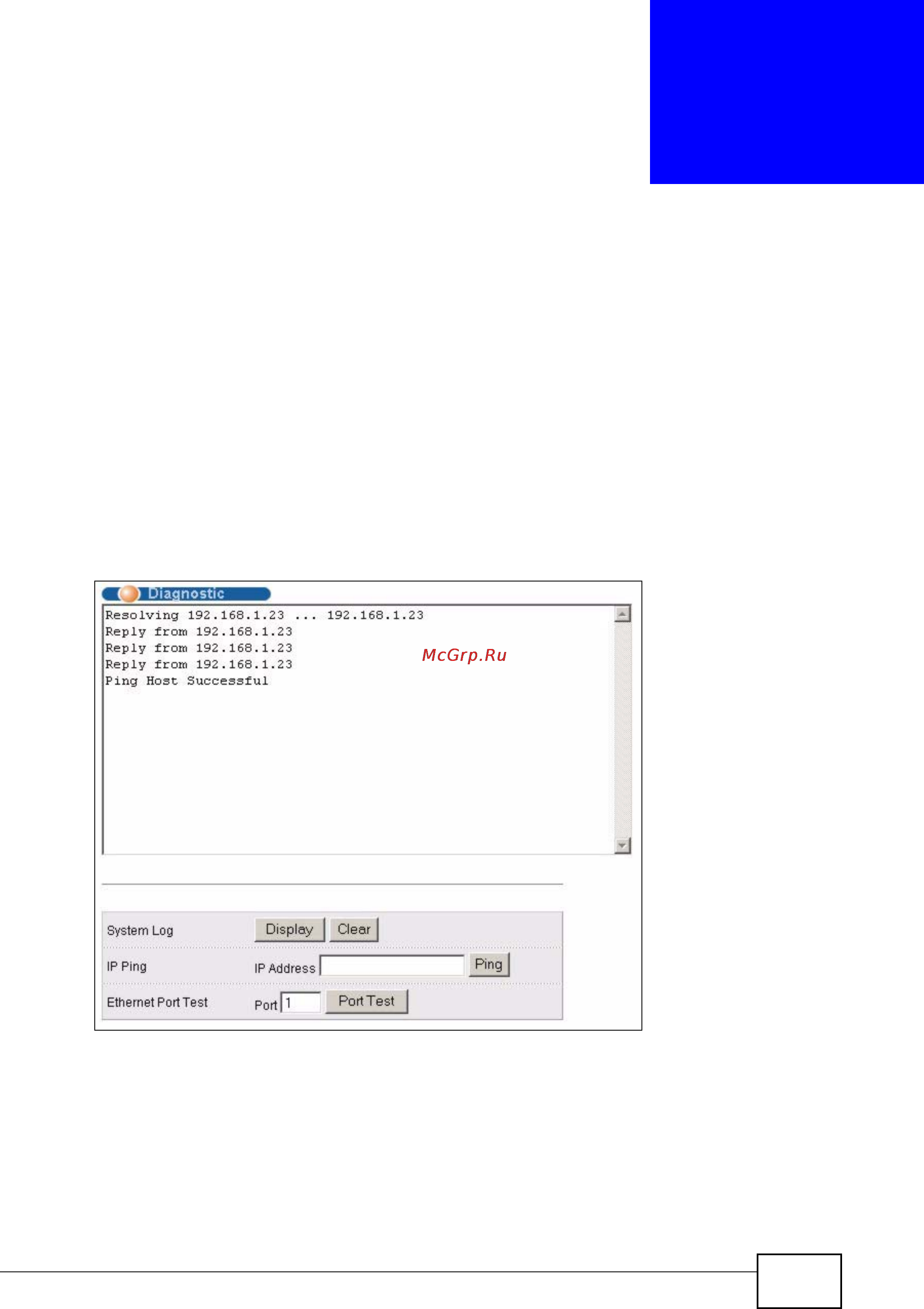

Figure 181 Management > Diagnostic
