Chapter 22 Queuing Method
MES-3728 User’s Guide
195
22.2 Configuring Queuing
Click Advanced Application > Queuing Method in the navigation panel.

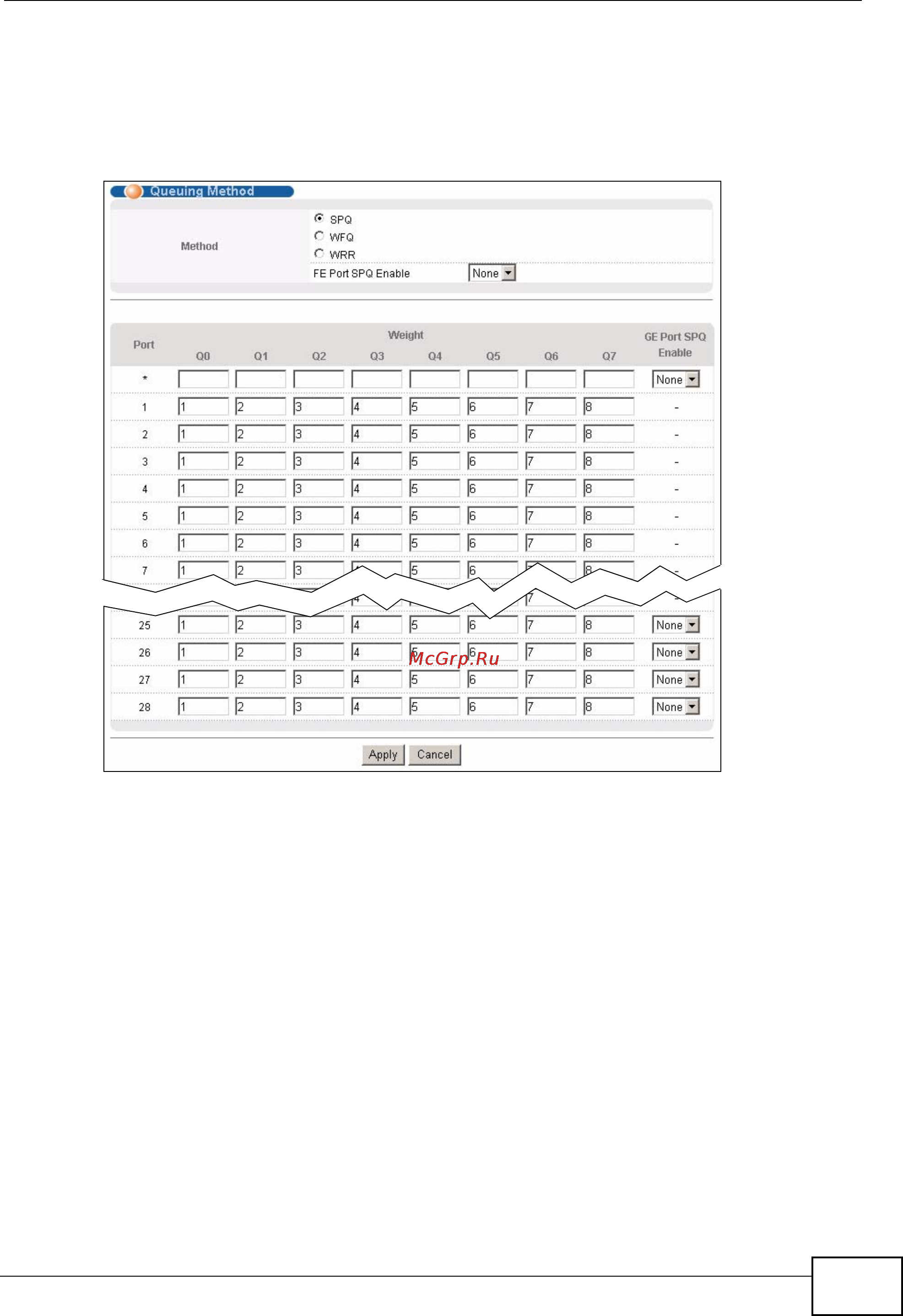

Figure 98 Advanced Application > Queuing Method
