MES-3728 User’s Guide
33
CHAPTER 3
Hardware Overview
This chapter describes the front panel and rear panel of the Switch and shows you
how to make the hardware connections.
3.1 Front Panel

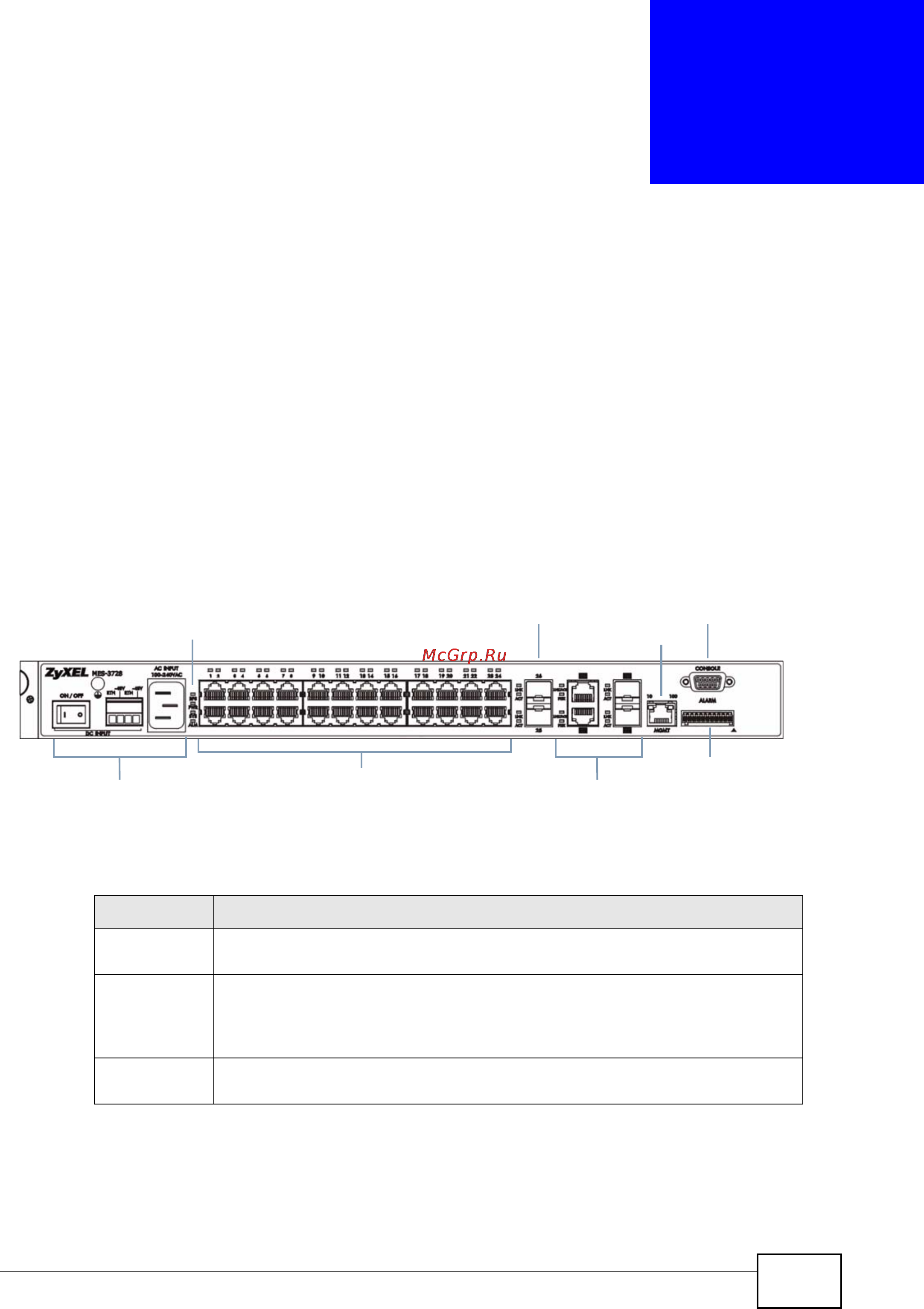

The following figure shows the front panel of the Switch.
Figure 8 Front Panel: AC/DC Model
The following table describes the port labels on the front panel.
Ethernet Ports
Dual Personality Interfaces
Console Port
LEDs
Signal slot
Power Connection
Mini-GBIC slots
Management
Table 1 Front Panel Connections
LABEL DESCRIPTION
Power
Connection
Connect an appropriate power supply to this port. In the AC/DC model,
connect an appropriate power supply to one and only one of the ports.
24 10/100
Mbps RJ-45
Ethernet
Ports
Connect these ports to a computer, a hub, an Ethernet switch or router.
Two Mini-
GBIC Slots
Use mini-GBIC transceivers in these slots for fiber-optic or copper
connections to backbone Ethernet switches.
