Chapter 20 Classifier
MES-3728 User’s Guide
183
After you have configured a classifier, you can configure a policy (in the Policy
screen) to define action(s) on the classified traffic flow.

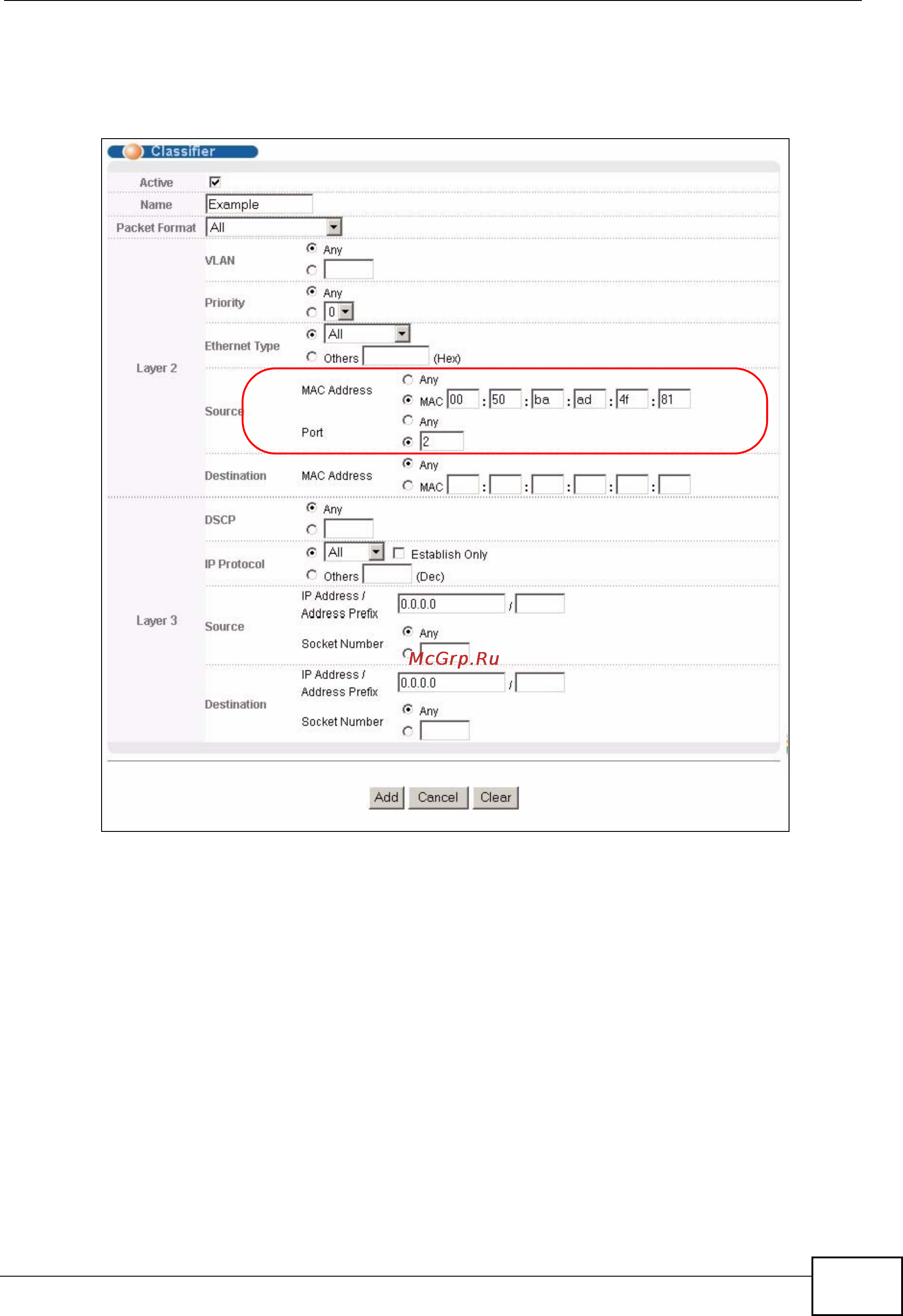

Figure 94 Classifier: Example
