Chapter 17 Link Aggregation
MES-3728 User’s Guide
161
17.5 Link Aggregation Control Protocol
Click Advanced Application > Link Aggregation > Link Aggregation Setting
> LACP to display the screen shown next. See Section 17.2 on page 155 for more
information on dynamic link aggregation.

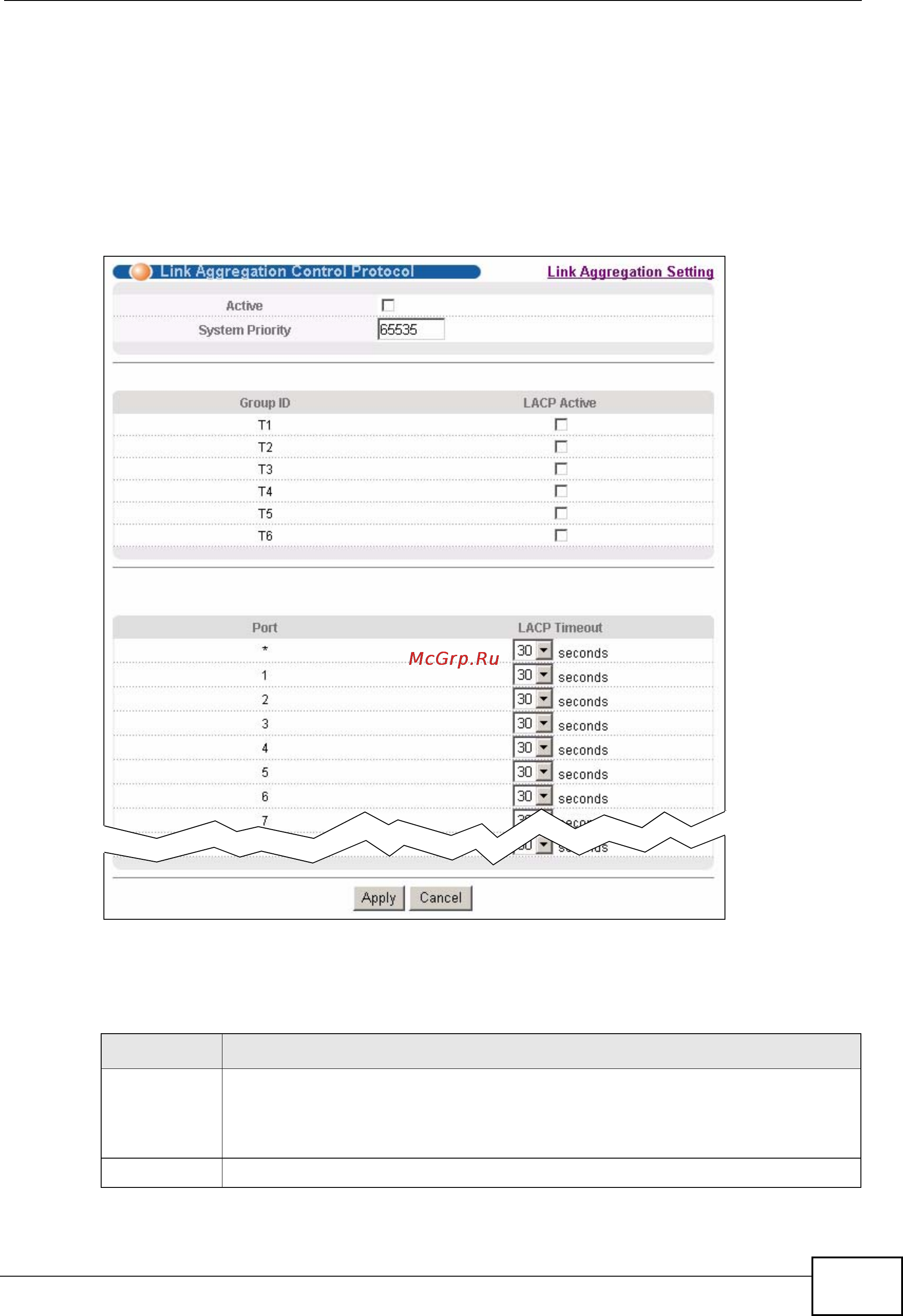

Figure 82 Advanced Application > Link Aggregation > Link Aggregation Setting >
LACP
The following table describes the labels in this screen.
Table 40 Advanced Application > Link Aggregation > Link Aggregation Setting >
LACP
LABEL DESCRIPTION
Link
Aggregation
Control
Protocol
Note: Do not configure this screen unless you want to enable
dynamic link aggregation.
Active Select this checkbox to enable Link Aggregation Control Protocol (LACP).
