Chapter 13 Spanning Tree Protocol
MES-3728 User’s Guide
141
13.8 Configure Multiple Spanning Tree Protocol
To configure MSTP, click MSTP in the Advanced Application > Spanning Tree
Protocol screen. See Section 13.1.5 on page 128 for more information on MSTP.

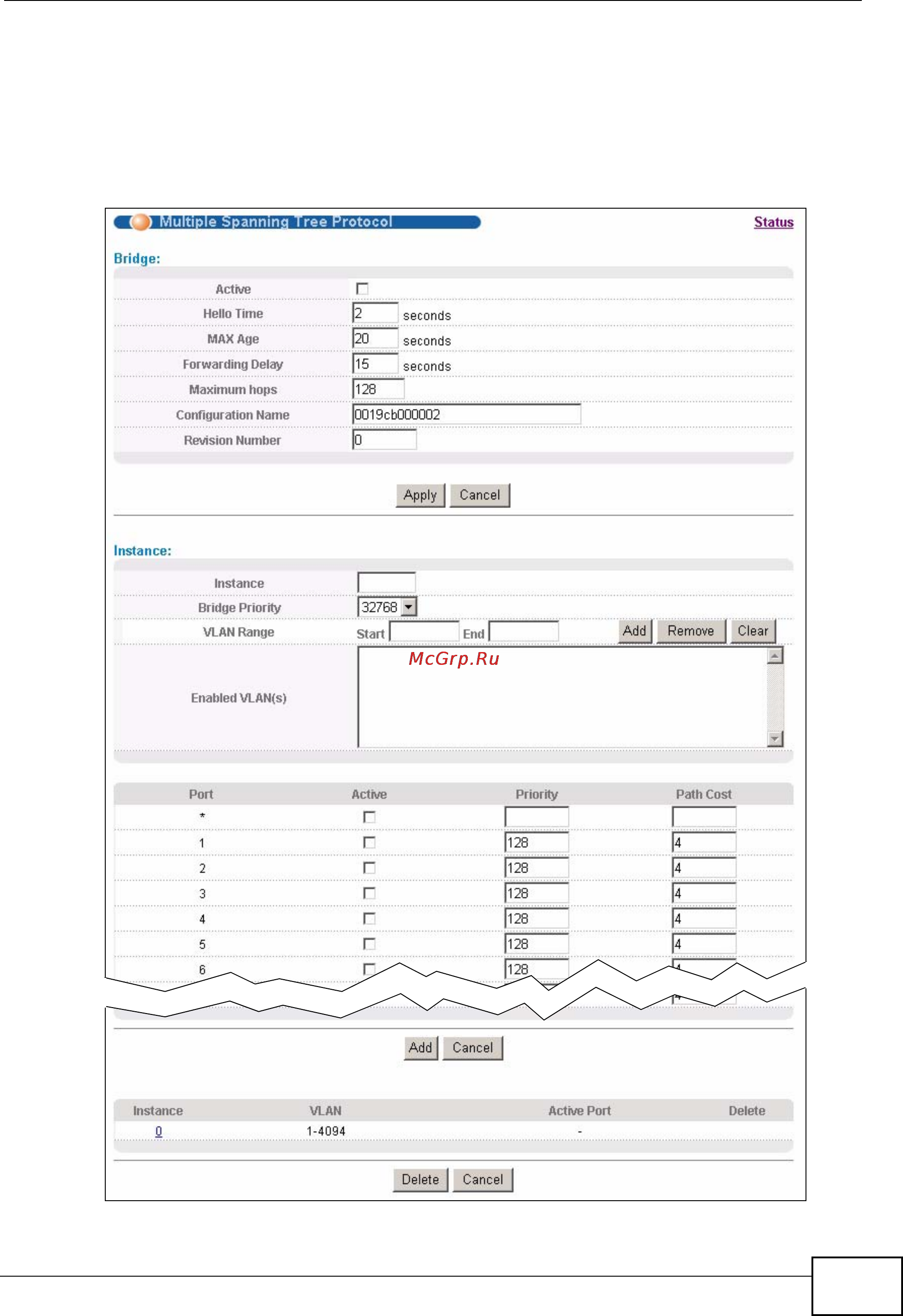

Figure 75 Advanced Application > Spanning Tree Protocol > MSTP
