Chapter 24 Multicast
MES-3728 User’s Guide
220

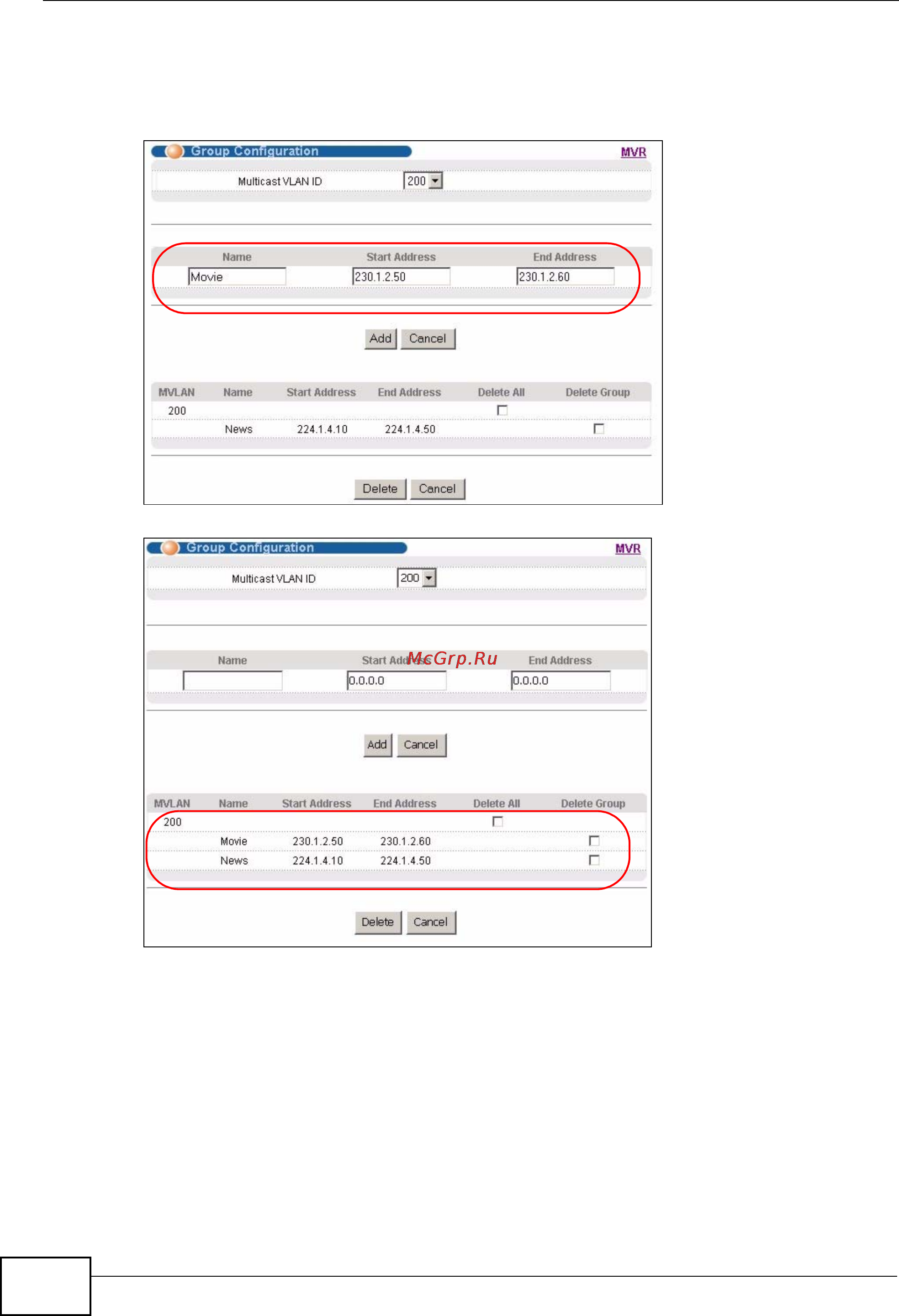

following figure shows an example where two multicast groups (News and
Movie) are configured for the multicast VLAN 200.
Figure 113 MVR Group Configuration Example
Figure 114 MVR Group Configuration Example
