Chapter 13 Spanning Tree Protocol
MES-3728 User’s Guide
137
13.6 Configure Multiple Rapid Spanning Tree
Protocol
To configure MRSTP, click MRSTP in the Advanced Application > Spanning
Tree Protocol screen. See Section 13.1 on page 125 for more information on
MRSTP.

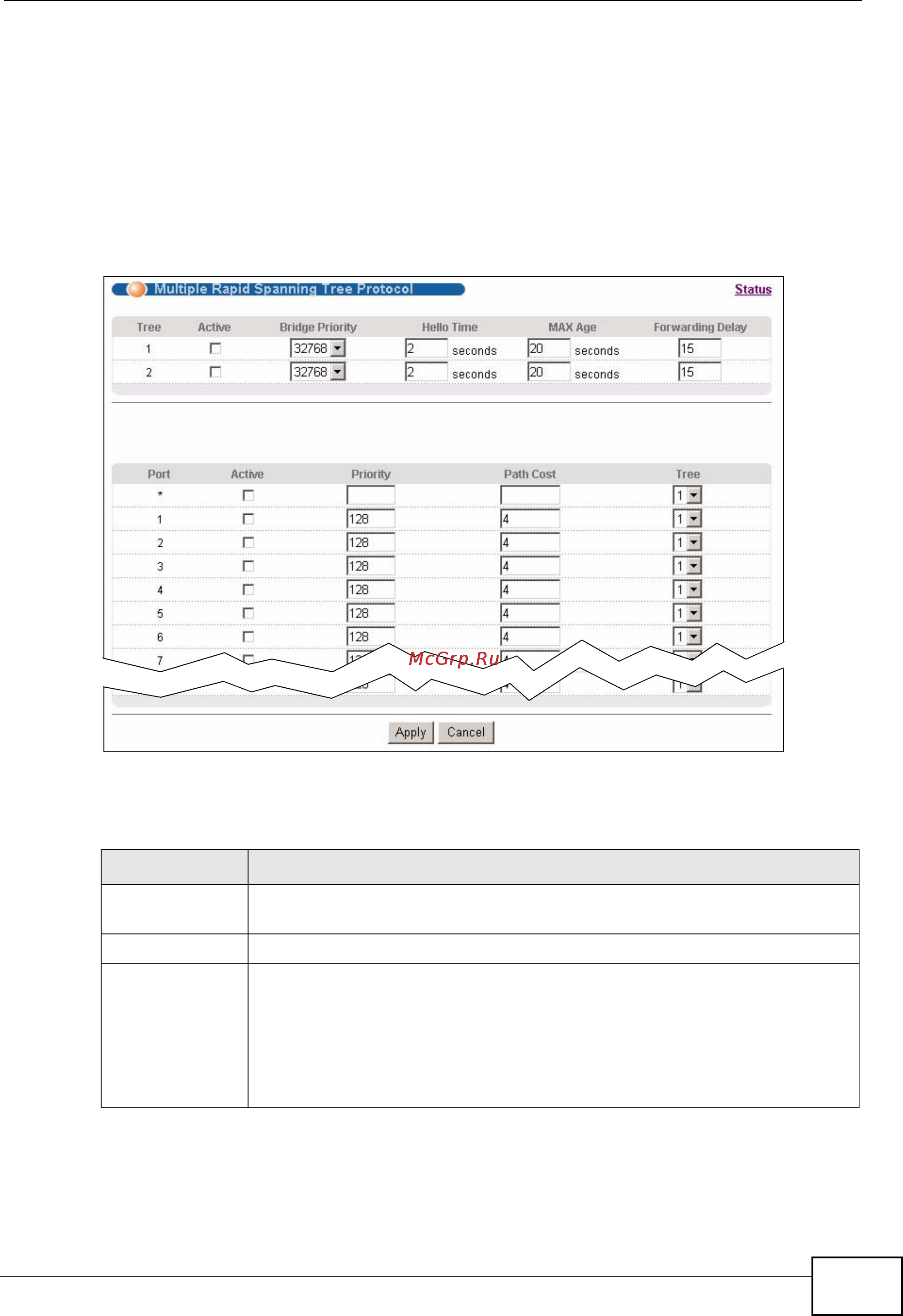

Figure 73 Advanced Application > Spanning Tree Protocol > MRSTP
The following table describes the labels in this screen.
Table 29 Advanced Application > Spanning Tree Protocol > MRSTP
LABEL DESCRIPTION
Status Click Status to display the MRSTP Status screen (see Figure 72 on
page 135).
Tree This is a read only index number of the STP trees.
Active Select this check box to activate an STP tree. Clear this checkbox to
disable an STP tree.
Note: You must also activate Multiple Rapid Spanning Tree in the
Advanced Application > Spanning Tree Protocol >
Configuration screen to enable MRSTP on the Switch.
