MES-3728 User’s Guide
63
CHAPTER 6
Tutorials
This chapter provides some examples of using the web configurator to set up and
use the Switch. The tutorials include:
• How to Use DHCP Snooping on the Switch
• How to Use DHCP Relay on the Switch
6.1 How to Use DHCP Snooping on the Switch
You only want DHCP server A connected to port 5 to assign IP addresses to all
devices in VLAN network (V). Create a VLAN containing ports 5, 6 and 7. Connect
a computer M to the Switch’s MGMT port.

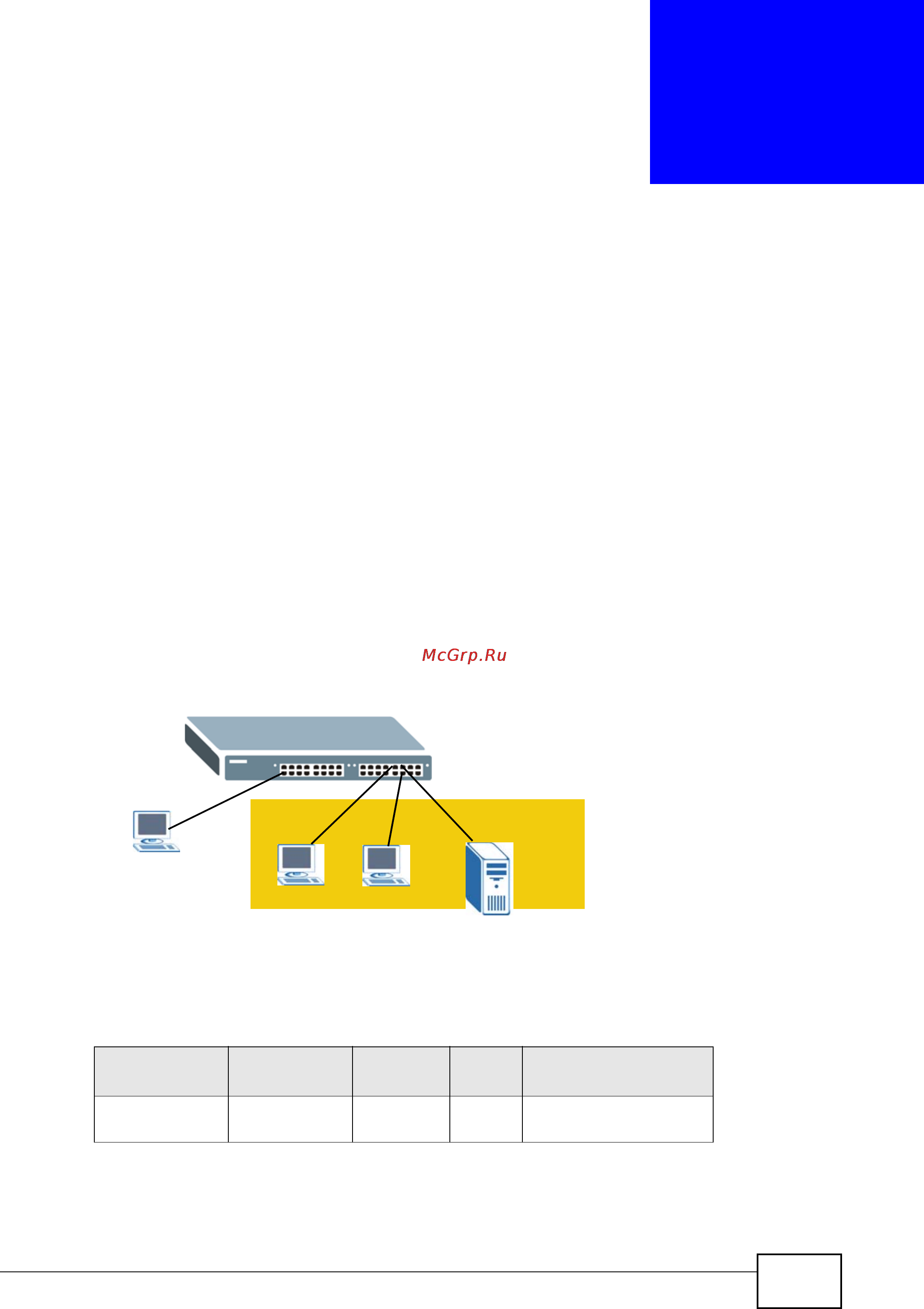

Figure 25 Tutorial: DHCP Snooping Tutorial Overview
Note: For related information about DHCP snooping, see Section 26.1 on page 235.
The settings in this tutorial are as the following.
Table 5 Tutorial: Settings in this Tutorial
HOST
PORT
CONNECTED
VLAN PVID
DHCP SNOOPING
PORT TRUSTED
DHCP Server
(A)
5 1 and 100 100 Yes
V
A
B
M
C
