Chapter 27 Loop Guard
MES-3728 User’s Guide
263
port N. The Switch will shut down port N if it detects that the probe packet has
returned to the Switch.

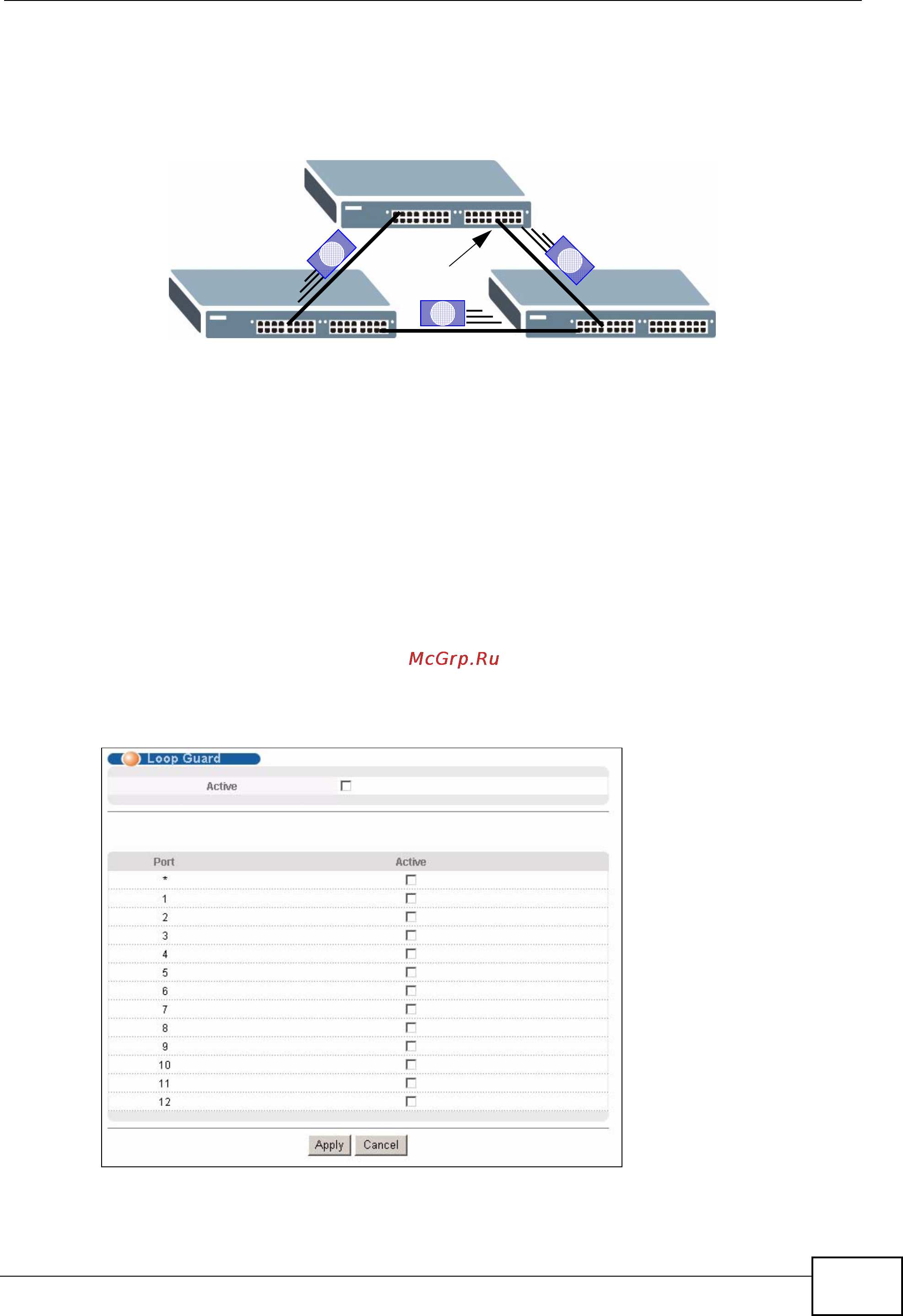

Figure 137 Loop Guard - Network Loop
Note: After resolving the loop problem on your network you can re-activate the
disabled port via the web configurator (see Section 8.7 on page 90) or via
commands (See the CLI Reference Guide).
27.2 Loop Guard Setup
Click Advanced Application > Loop Guard in the navigation panel to display the
screen as shown.
Note: The loop guard feature can not be enabled on the ports that have Spanning
Tree Protocol (RSTP, MRSTP or MSTP) enabled.
Figure 138 Advanced Application > Loop Guard
A
P
P
N
P
