Chapter 25 AAA
MES-3728 User’s Guide
223
Click Advanced Application > AAA in the navigation panel to display the screen
as shown.

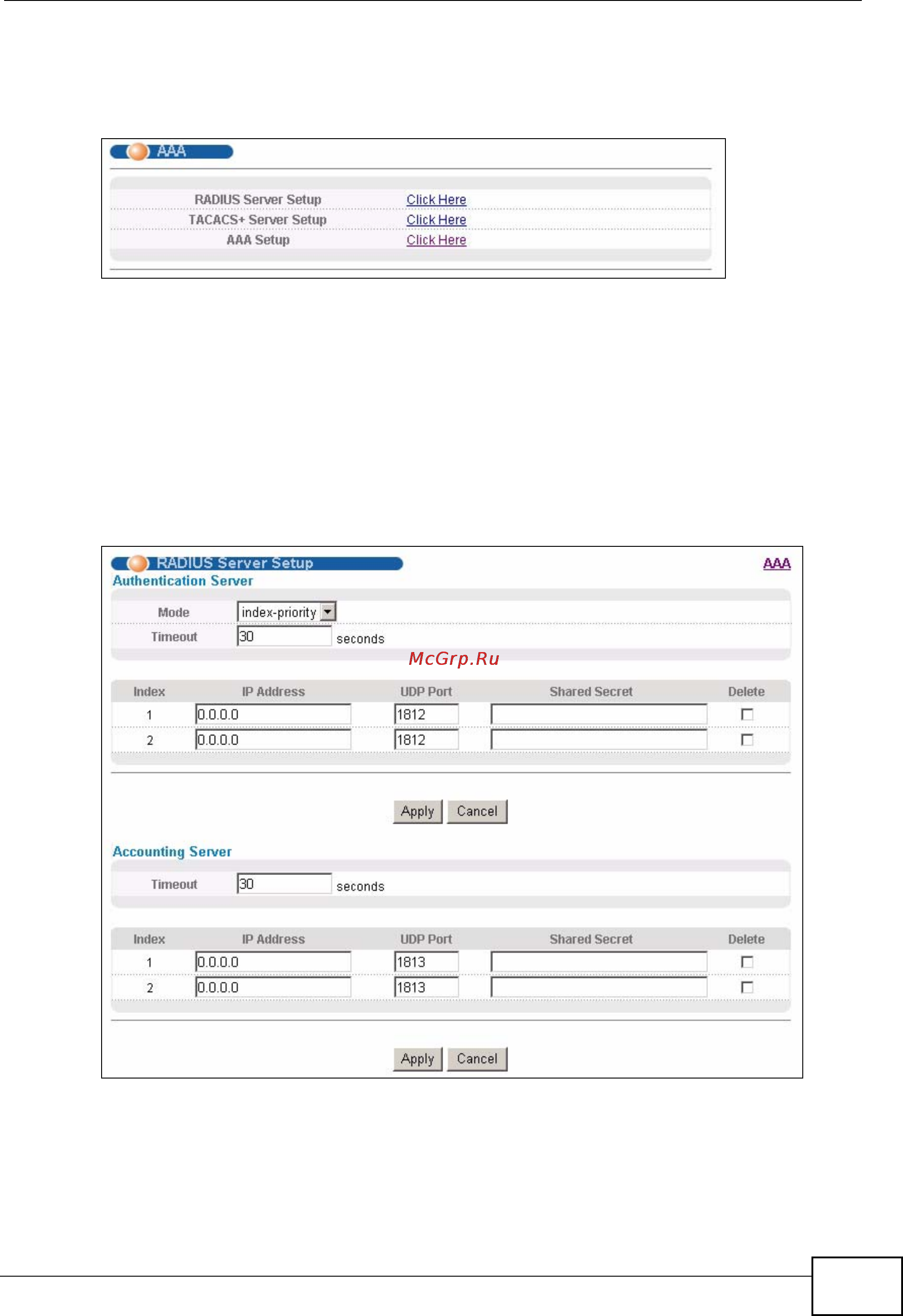

Figure 116 Advanced Application > AAA
25.2.1 RADIUS Server Setup
Use this screen to configure your RADIUS server settings. See Section 25.1.2 on
page 222 for more information on RADIUS servers and Section 25.3 on page 231
for RADIUS attributes utilized by the authentication and accounting features on
the Switch. Click on the RADIUS Server Setup link in the AAA screen to view
the screen as shown.
Figure 117 Advanced Application > AAA > RADIUS Server Setup
