Note: When two rules conflict with each other, a higher layer rule has priority over

lower layer rule.

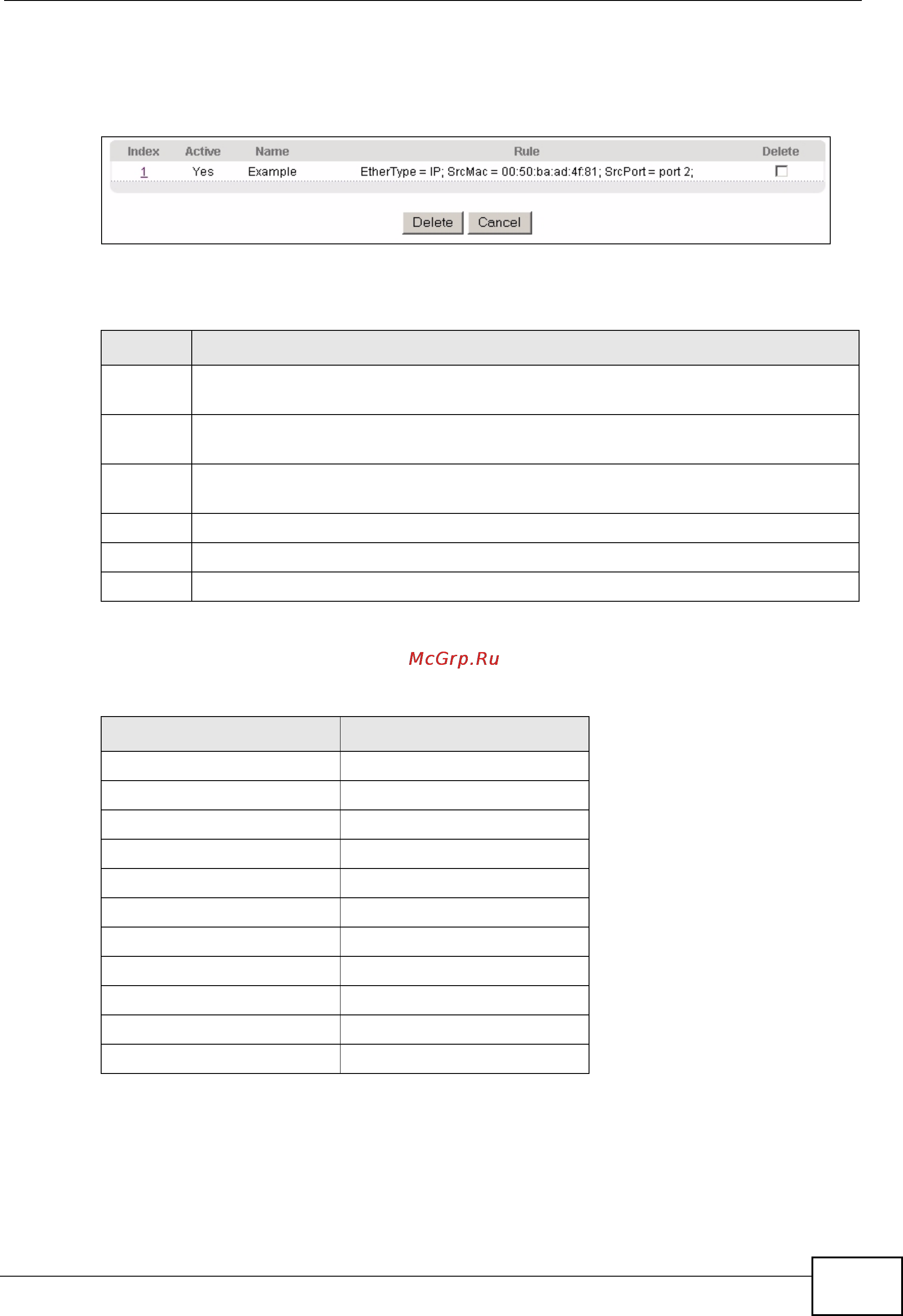

Figure 93 Advanced Application > Classifier: Summary Table

The following table describes the labels in this screen.

The following table shows some other common Ethernet types and the

corresponding protocol number.

In the Internet Protocol there is a field, called “Protocol”, to identify the IP protocol

type. The following table shows some common protocol types and the

Table 46 Classifier: Summary Table

LABEL DESCRIPTION

Index This field displays the index number of the rule. Click an index number to edit

the rule.

Active This field displays Yes when the rule is activated and No when it is

deactivated.

Name This field displays the descriptive name for this rule. This is for identification

purpose only.

Rule This field displays a summary of the classifier rule’s settings.

Delete Click Delete to remove the selected entry from the summary table.

Cancel Click Cancel to clear the Delete check boxes.

Table 47 Common Ethernet Types and Protocol Numbers

ETHERNET TYPE PROTOCOL NUMBER

IP ETHII 0800

X.75 Internet 0801

NBS Internet 0802

ECMA Internet 0803

Chaosnet 0804

X.25 Level 3 0805

XNS Compat 0807

Banyan Systems 0BAD

BBN Simnet 5208

IBM SNA 80D5

AppleTalk AARP 80F3
