Chapter 24 Multicast
MES-3728 User’s Guide
219
To configure the MVR settings on the Switch, create a multicast group in the MVR
screen and set the receiver and source ports.

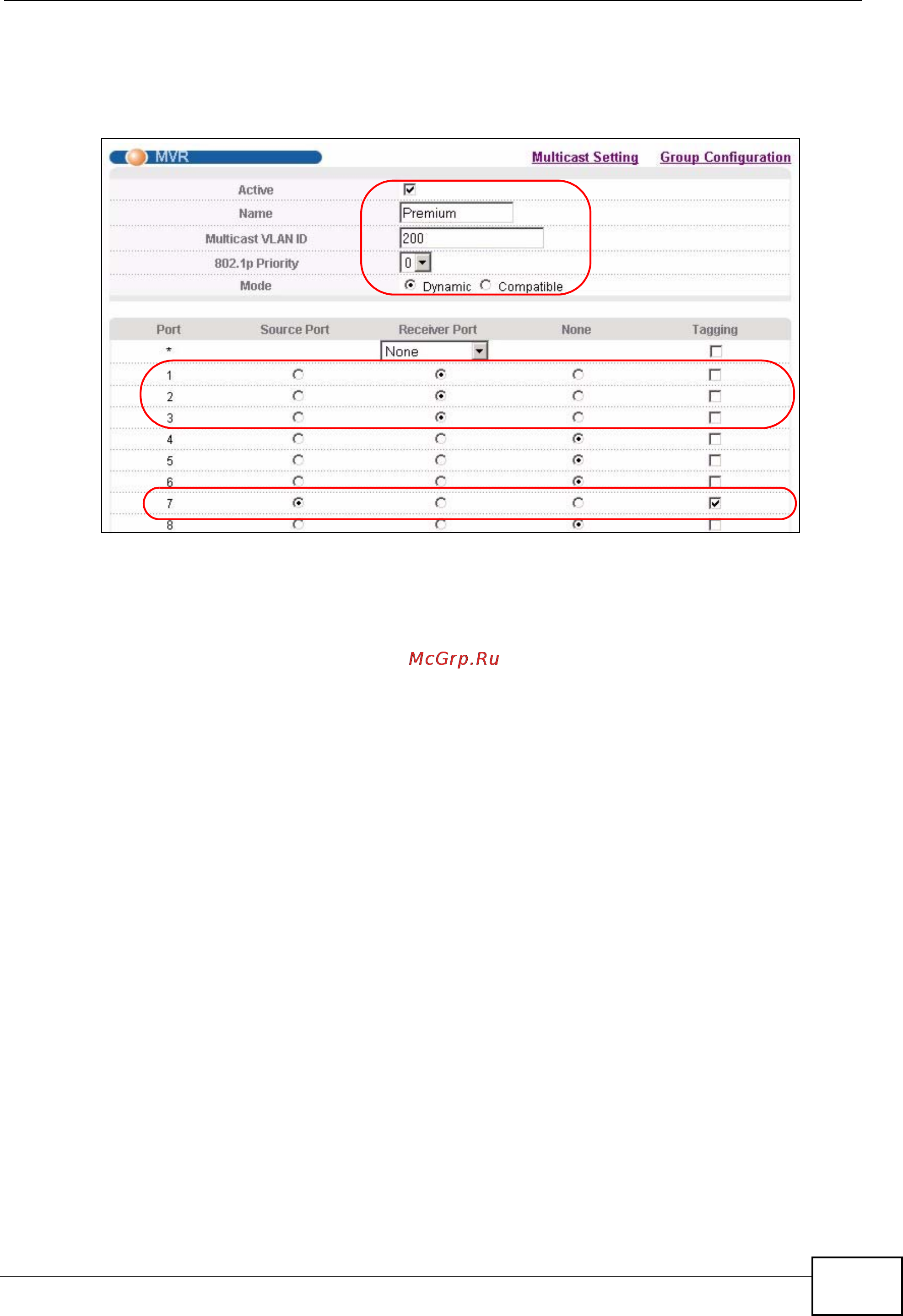

Figure 112 MVR Configuration Example
To set the Switch to forward the multicast group traffic to the subscribers,
configure multicast group settings in the Group Configuration screen. The
