Chapter 9 VLAN
MES-3728 User’s Guide
98
VLAN group tags 1 and 2 (VLAN groups that are unknown to those switches) to
pass through their VLAN trunking port(s).

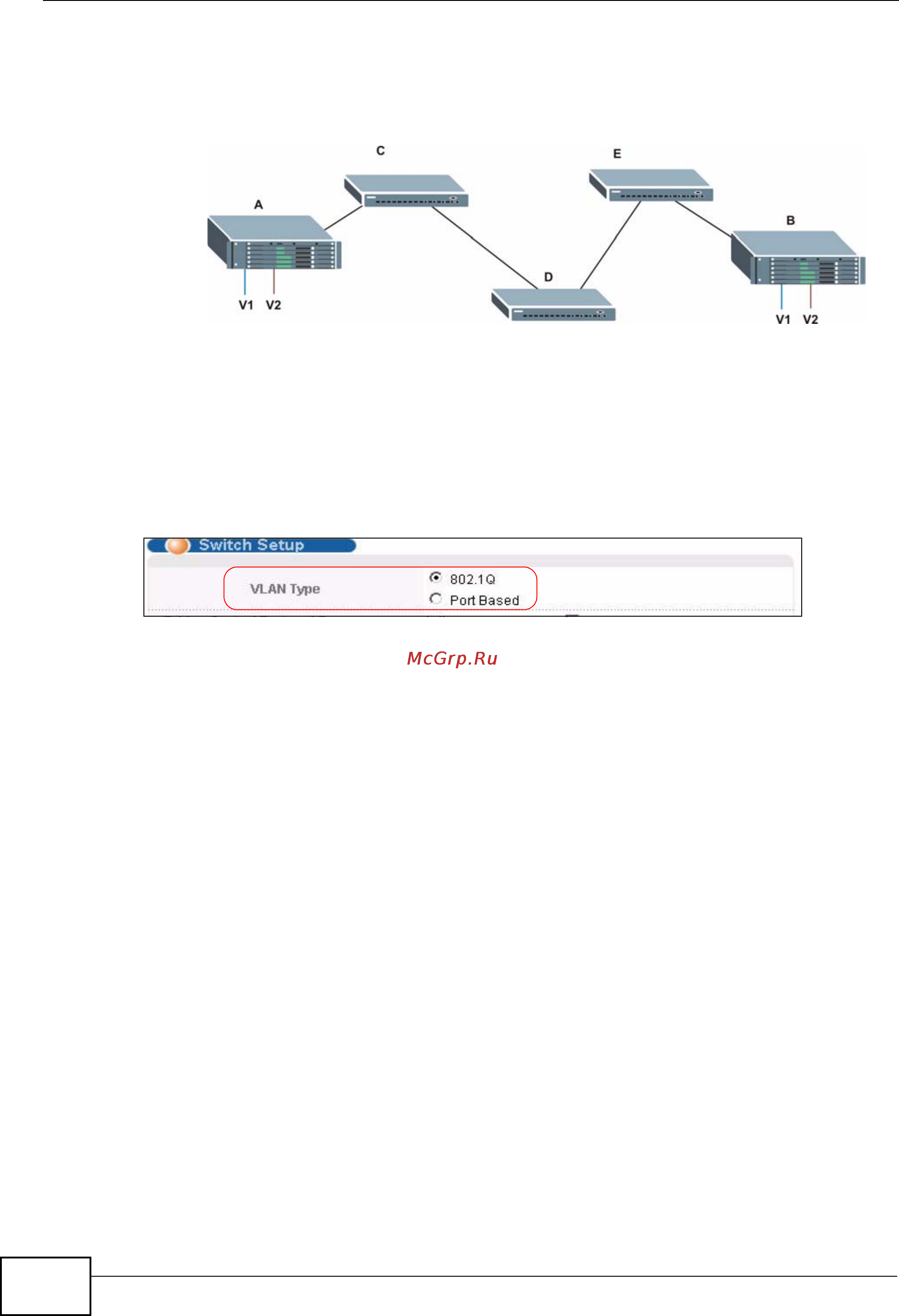

Figure 45 Port VLAN Trunking
9.4 Select the VLAN Type
Select a VLAN type in the Basic Setting > Switch Setup screen.
Figure 46 Switch Setup > Select VLAN Type
9.5 Static VLAN
Use a static VLAN to decide whether an incoming frame on a port should be
• sent to a VLAN group as normal depending on its VLAN tag.
• sent to a group whether it has a VLAN tag or not.
• blocked from a VLAN group regardless of its VLAN tag.
You can also tag all outgoing frames (that were previously untagged) from a port
with the specified VID.
