Chapter 4 The Web Configurator
MES-3728 User’s Guide
48
3 The login screen appears. The default username is admin and associated default
password is 1234. The date and time display as shown if you have not configured
a time server nor manually entered a time and date in the General Setup screen.

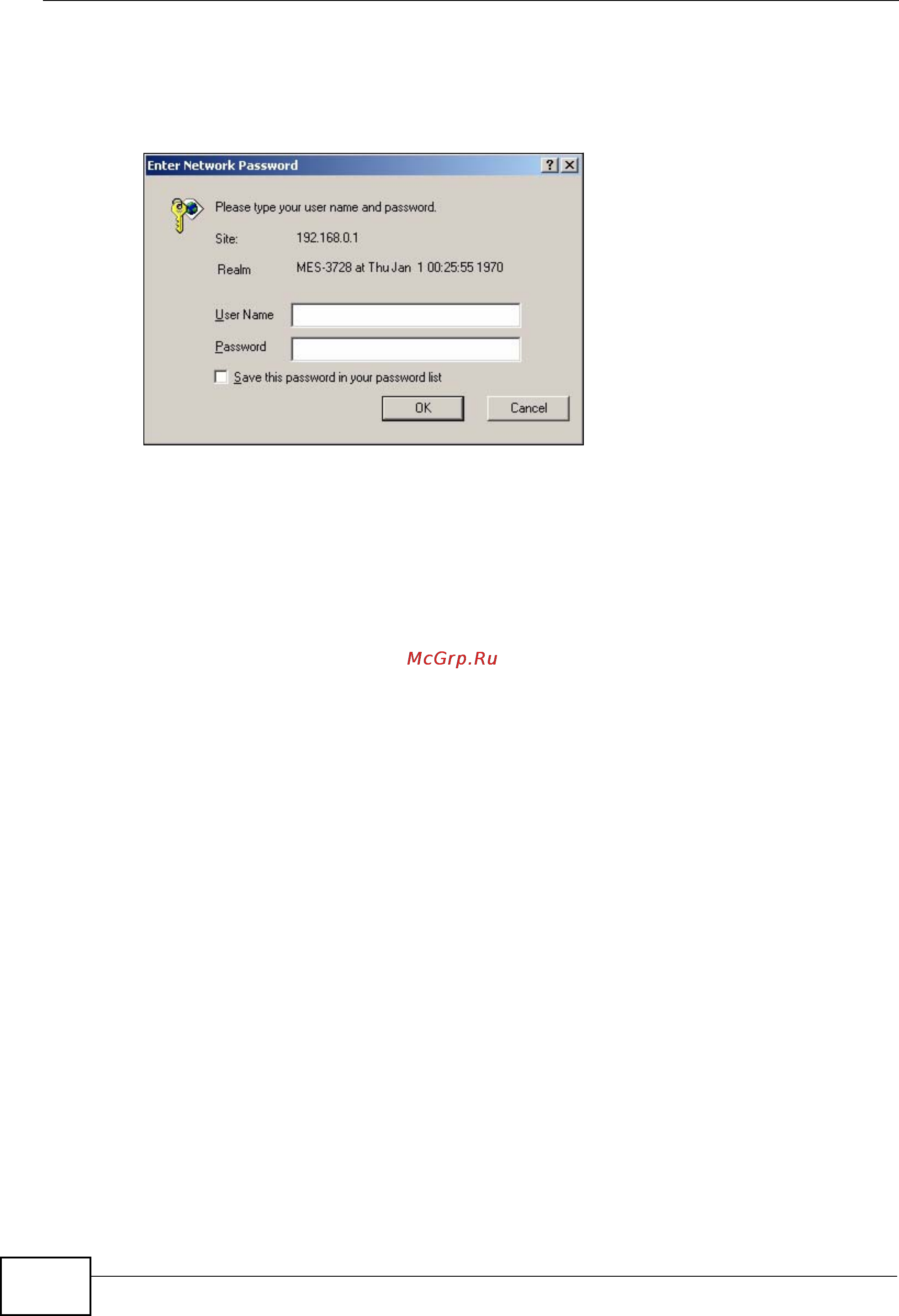

Figure 17 Web Configurator: Login
4 Click OK to view the first web configurator screen.
4.3 The Status Screen
The Status screen is the first screen that displays when you access the web
configurator.
