Chapter 24 Multicast
MES-3728 User’s Guide
207
24.3 Multicast Setting
Click Advanced Applications > Multicast > Multicast Setting link to display
the screen as shown. See Section 24.1 on page 205 for more information on
multicasting.

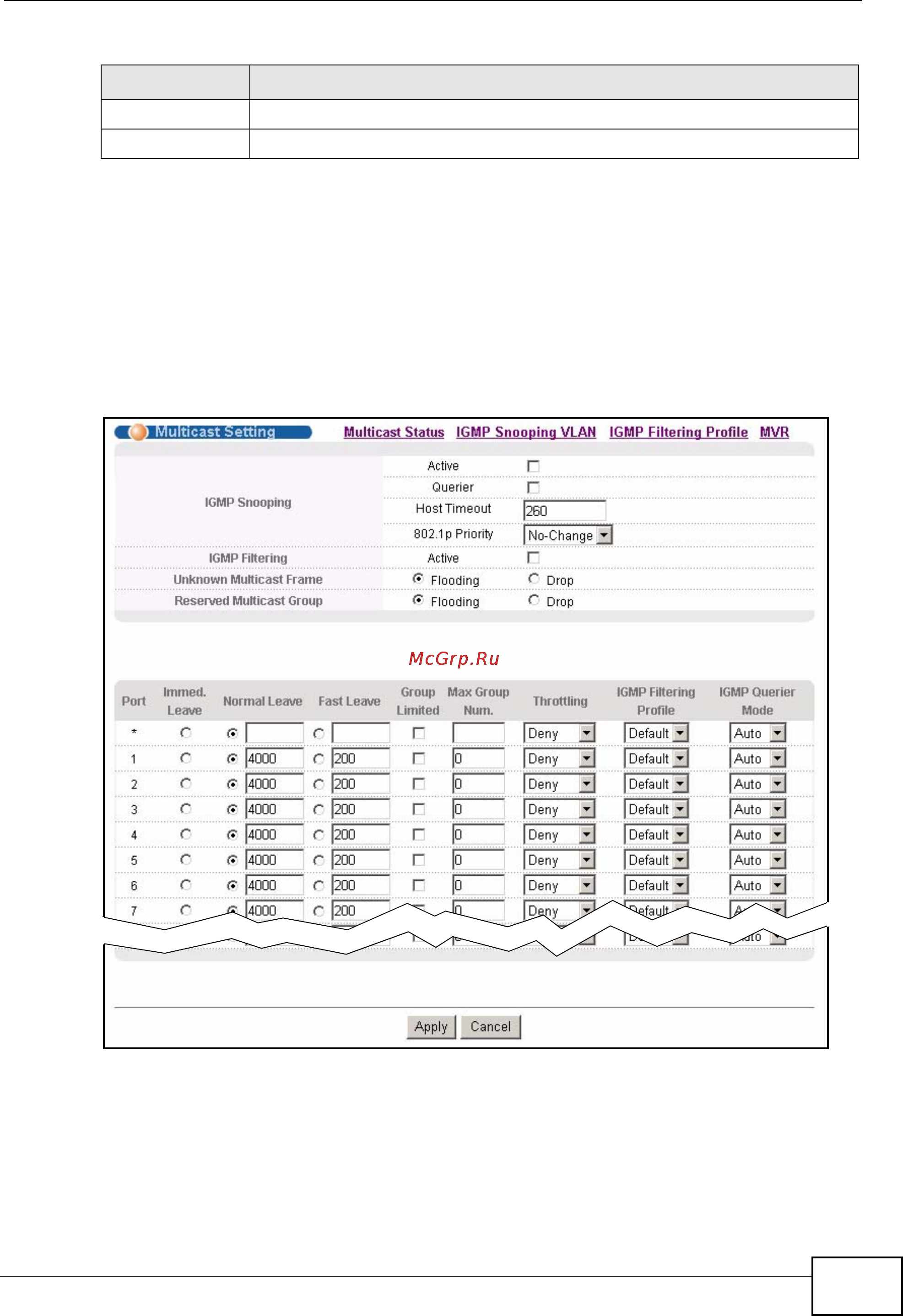

Figure 104 Advanced Application > Multicast > Multicast Setting
Port This field displays the port number that belongs to the multicast group.
Multicast Group This field displays IP multicast group addresses.
Table 59 Advanced Application > Multicast Status (continued)
LABEL DESCRIPTION
