Chapter 17 Link Aggregation
MES-3728 User’s Guide
163
1 Make your physical connections - make sure that the ports that you want to
belong to the trunk group are connected to the same destination. The following
figure shows ports 2-5 on switch A connected to switch B.

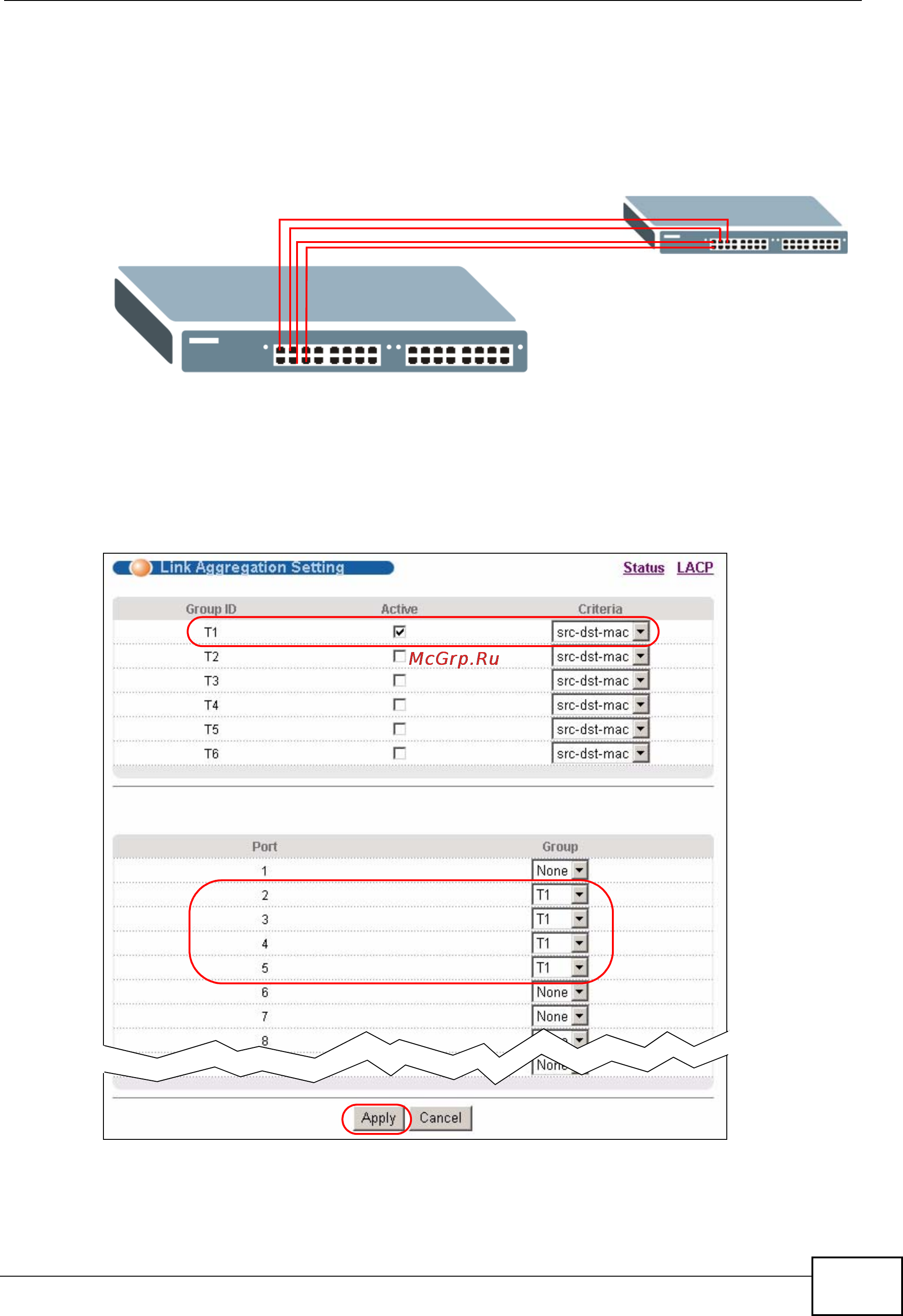

Figure 83 Trunking Example - Physical Connections
2 Configure static trunking - Click Advanced Application > Link Aggregation
> Link Aggregation Setting. In this screen activate trunk group T1, select the
traffic distribution algorithm used by this group and select the ports that should
belong to this group as shown in the figure below. Click Apply when you are done.
Figure 84 Trunking Example - Configuration Screen
Your trunk group 1 (T1) configuration is now complete.
