Chapter 39 ARP Table
MES-3728 User’s Guide
346
39.2 Viewing the ARP Table
Click Management > ARP Table in the navigation panel to open the following
screen. Use the ARP table to view IP-to-MAC address mapping(s).

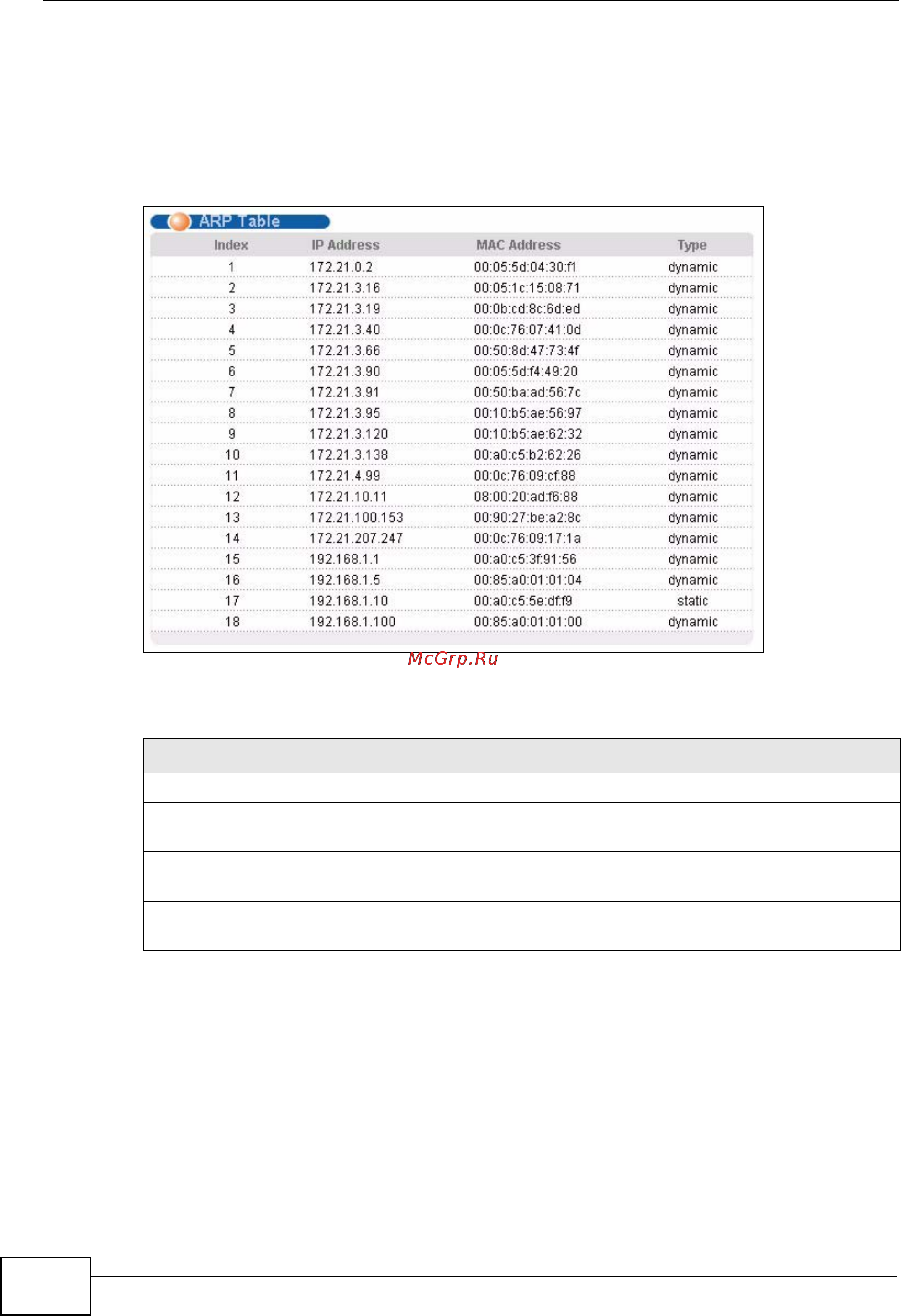

Figure 191 Management > ARP Table
The following table describes the labels in this screen.
Table 122 Management > ARP Table
LABEL DESCRIPTION
Index This is the ARP Table entry number.
IP Address This is the learned IP address of a device connected to a Switch port with
corresponding MAC address below.
MAC
Address
This is the MAC address of the device with corresponding IP address above.
Type This shows whether the MAC address is dynamic (learned by the Switch) or
static.
