Chapter 32 DHCP
MES-3728 User’s Guide
293

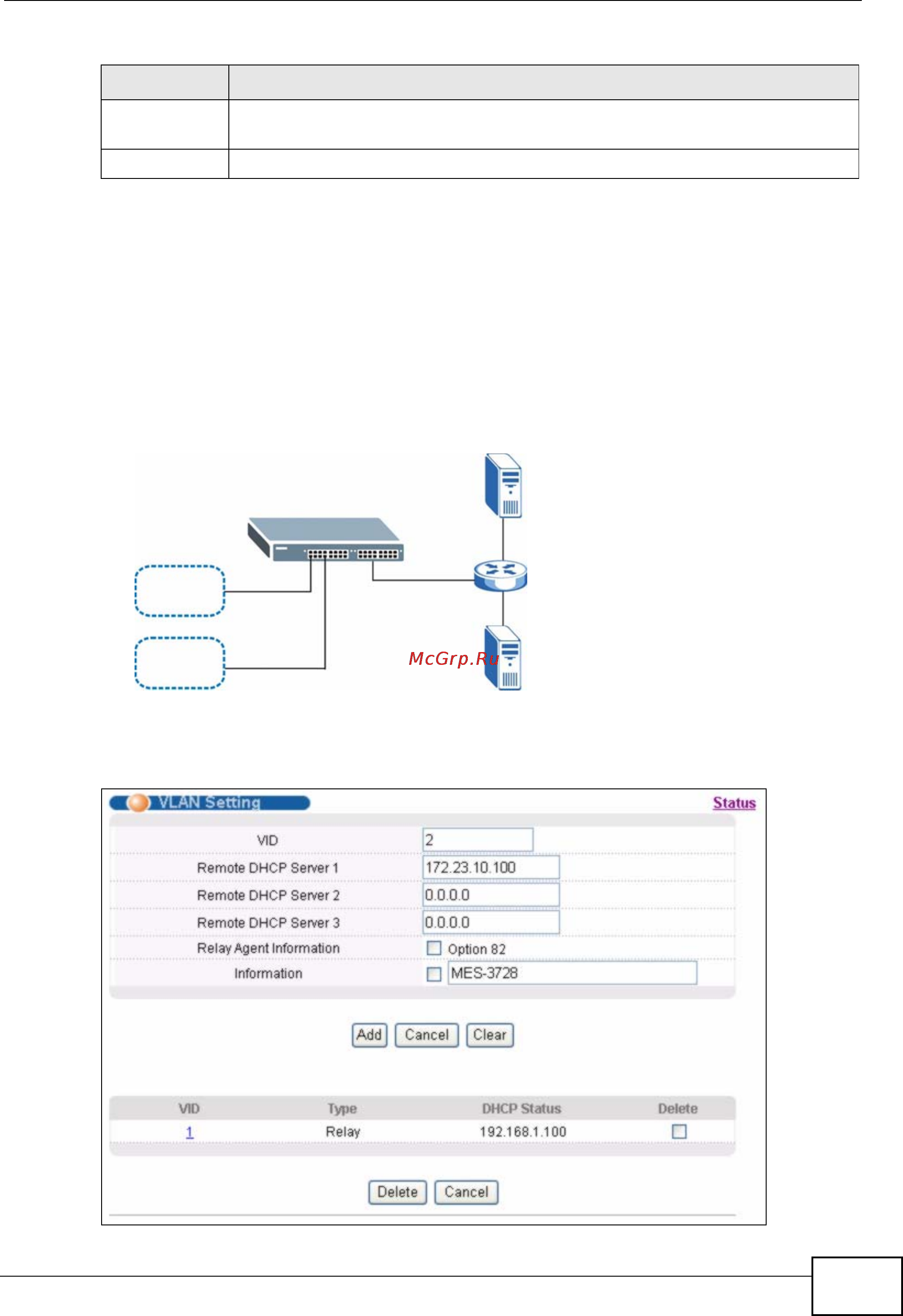

32.4.1 Example: DHCP Relay for Two VLANs
The following example displays two VLANs (VIDs 1 and 2) for a campus network.
Two DHCP servers are installed to serve each VLAN. The system is set up to
forward DHCP requests from the dormitory rooms (VLAN 1) to the DHCP server
with an IP address of 192.168.1.100. Requests from the academic buildings (VLAN
2) are sent to the other DHCP server with an IP address of 172.23.10.100.
Figure 159 DHCP Relay for Two VLANs
For the example network, configure the VLAN Setting screen as shown.
Figure 160 DHCP Relay for Two VLANs Configuration Example
Delete Select the configuration entries you want to remove and click Delete to
remove them.
Cancel Click Cancel to clear the Delete check boxes.
Table 98 IP Application > DHCP > VLAN (continued)
LABEL DESCRIPTION
VLAN 1
VLAN 2
DHCP:
192.168.1.100
DHCP:
172.23.10.100
