Chapter 18 Port Authentication
MES-3728 User’s Guide
167
client connecting to a port on the Switch along with a password configured
specifically for MAC authentication on the Switch.

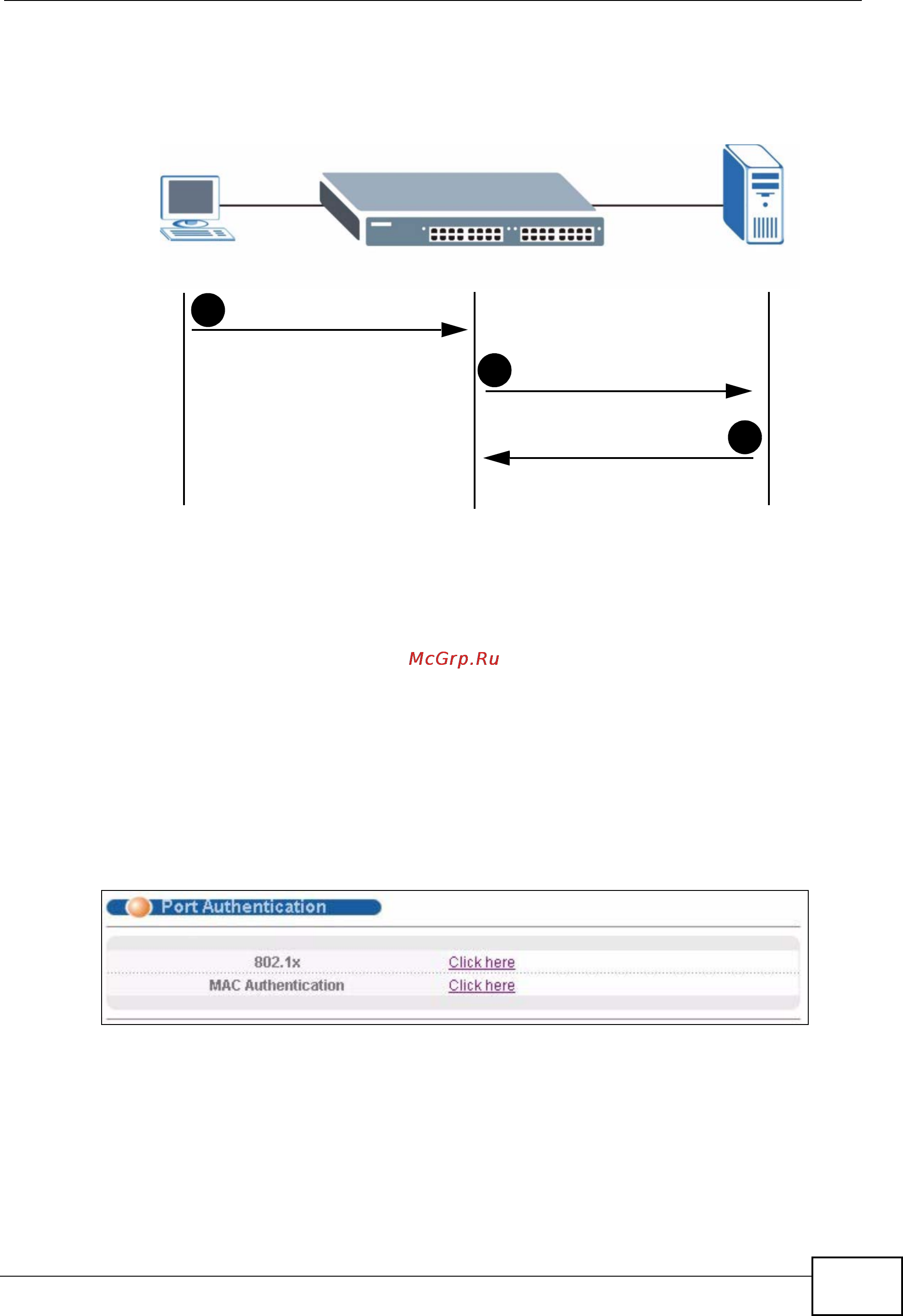

Figure 86 MAC Authentication Process
18.2 Port Authentication Configuration
To enable port authentication, first activate the port authentication method(s) you
want to use (both on the Switch and the port(s)) then configure the RADIUS
server settings in the Auth and Acct > Radius Server Setup screen.
Click Advanced Application > Port Authentication in the navigation panel to
display the screen as shown.
Figure 87 Advanced Application > Port Authentication
New Connection
Authentication Request
Authentication Reply
1
2
3
Session Granted/Denied
