Aten RCMDVI40BT [101/297] Installing the kvm over ip matrix manager

Chapter 5. Software Installation

Installing the KVM over IP Matrix Manager

The following are instructions to install the KVM over IP Matrix Manager on

a primary or secondary computer. For software requirements, see Minimum

Hardware/Software Requirements, page 10.

1. Insert the USB license key into a USB port on your computer.

Note: If you have more than 8 KE Series devices in your setup, a USB

license key is required to install the KVM over IP Matrix Manager.

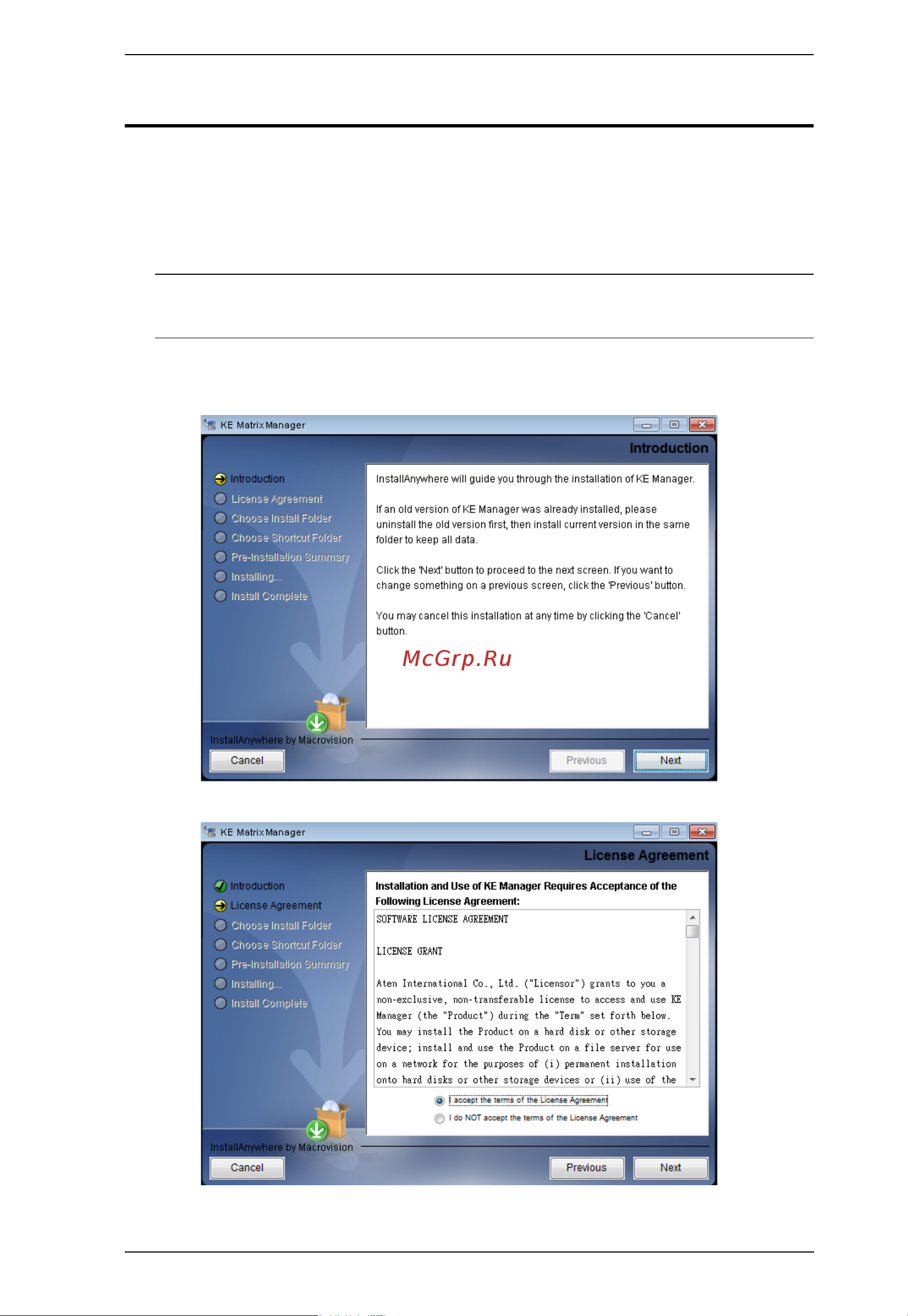

2. Double-click the KEMatrixManagerSetup file to start the setup. When the

Introduction screen appears, click Next.

3. The License Agreement appears:
