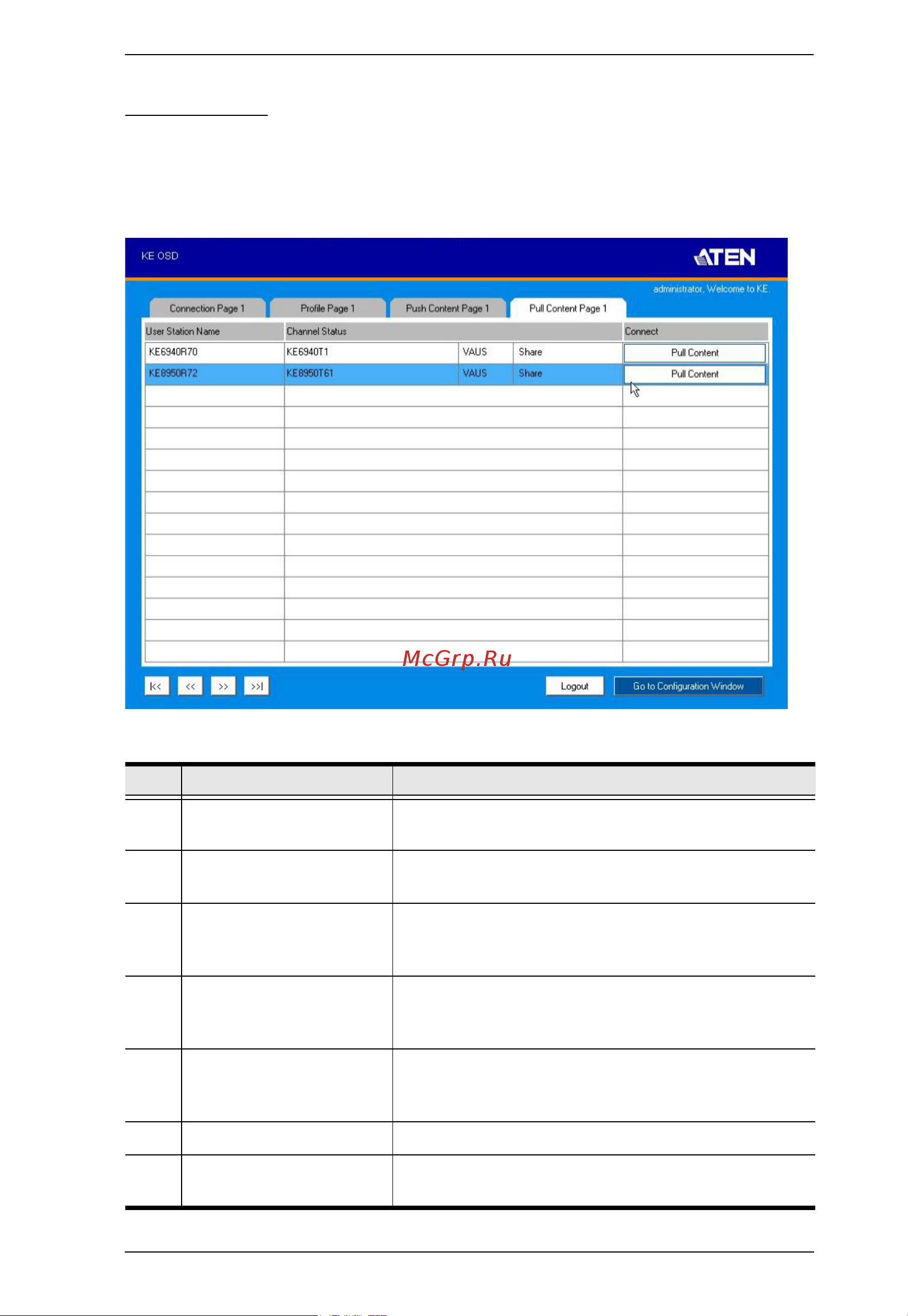

![Aten RCMDVI40BT [97/297] Pull content](/views2/1977522/page97/bg61.png)
Chapter 4. OSD Operation
81
Pull Content
Pull Content allows you to pull a receiver’s computer connection to the local
receiver’s console, allowing both to access to the computer. Click the Pull
Content tab and the following screen appears:
The Pull Content Page components are described in the table, below:
No. Item Description
1 Receiver Name Lists the receiver names currently connected to the
channel listed under Channel Status.
2 Channel Status Lists the name, description and access type of each
available channel connection.
3 Connect Click Pull Content and the receiver will pull the
channel connection to the local console using the
access mode displayed under Channel Status.
5 Next Arrow Use these two buttons to navigate to the next page
or to the end of the list if there are more choices
available than can be seen on the page.
6 Previous Arrow Use these two buttons to navigate to the previous
page or to the beginning of the list if there are more
choices available than can be seen on the page.
9 Logout Click this button to log out of the Connection Page.
10 Go to Configuration
Window
Click this button to return to the main OSD screen.
