Chapter 4. OSD Operation

System

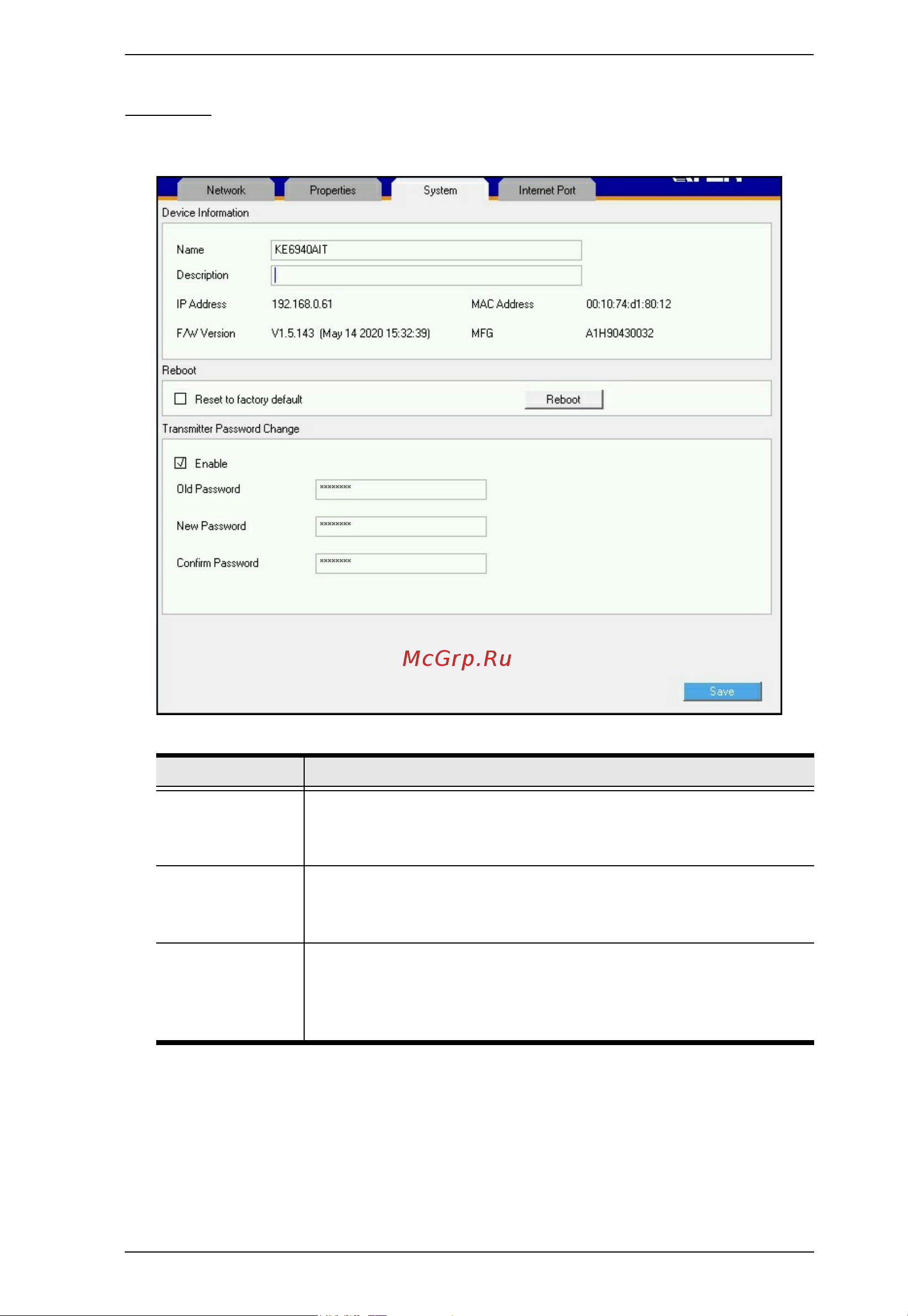

The System tab allows you to configure the transmitter’s general settings:

After entering the information, click Save.

Item Description

Device

Information

Enter the Name and Description of the transmitter. It also

displays the IP Address, MAC Address, F/W version, and Serial

Number of the Transmitter.

Reboot Check the box and click Reboot to reset the transmitter’s

settings back to the factory default. All custom settings (except

for login account settings) will be lost.

Transmitter

Password

Change

Check Enable to require a password for access to the

transmitter’s OSD configuration screen. Enter the Old

Password, enter a New Password, and confirm the new

password in the Confirm Password box.
