RCM KVM over IP Transmitter User Manual
110

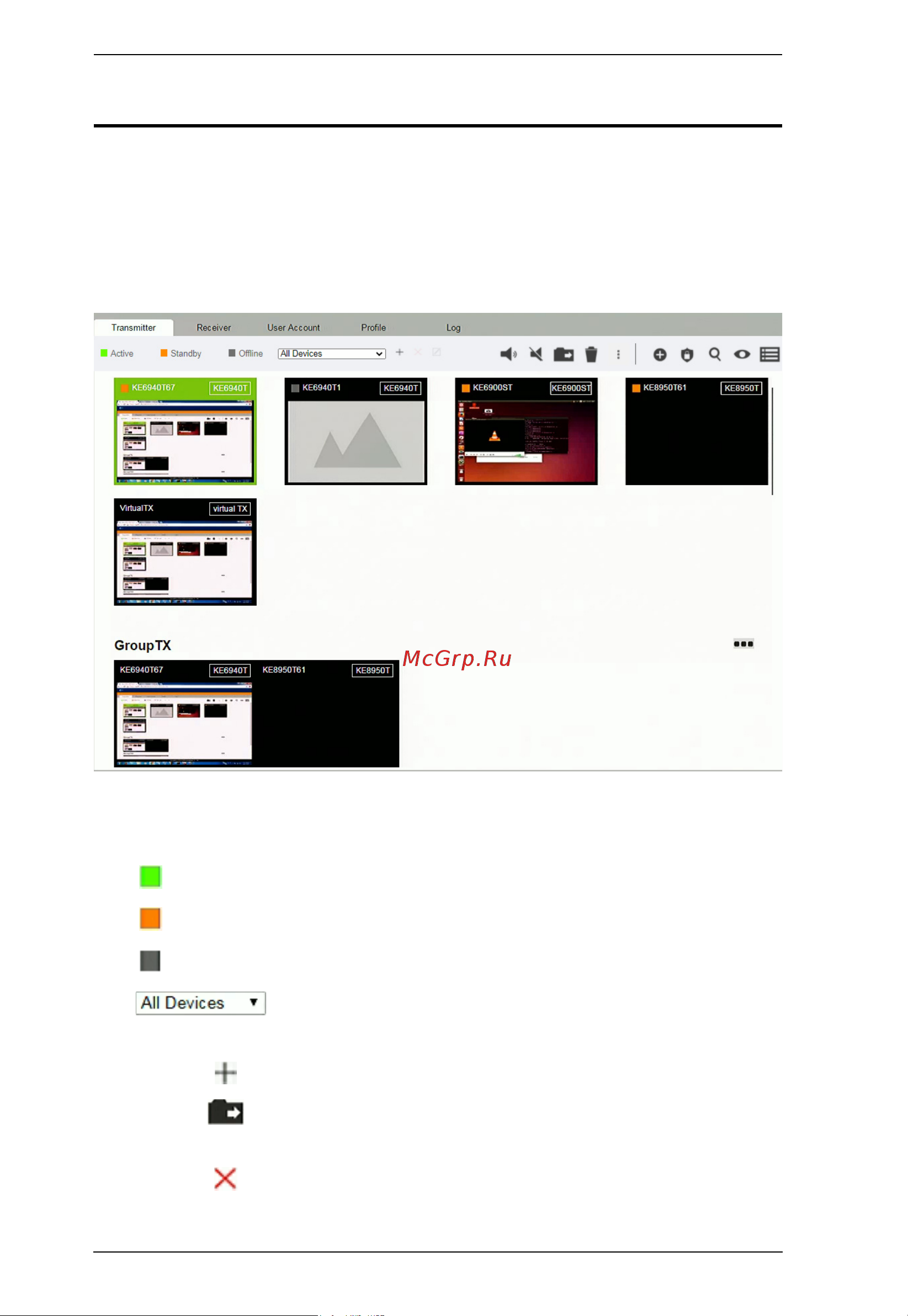

Transmitter
Click Transmitter in the System Status panel to open the settings. On this
page, you can add, delete and configure Transmitters (physical transmitters),
Virtual Transmitters (multi-source) and Transmitter Groups (multi-video
source). The KVM over IP Matrix Manager automatically adds transmitters
connected to the local area network with a valid IP address.
The meanings of the icons and headings on the page are straightforward and let
you view and configure Transmitters.
Active refers to a transmitter connection that is online and in use.
Standby refers to a transmitter connection that is online.
Offline refers to a transmitter connection that is offline.
Use this drop-down menu to filter transmitters by
location. Use Locations to limit the transmitters seen on the page.
Click to add a new Location.
Select a transmitter and click the Move to icon to add
devices to a Location.
Select a Location from the drop-down menu and click this
icon to delete it.
