Chapter 2. Hardware Setup

Rack Mount

Note: The diagram below is exemplified using KE6940T.

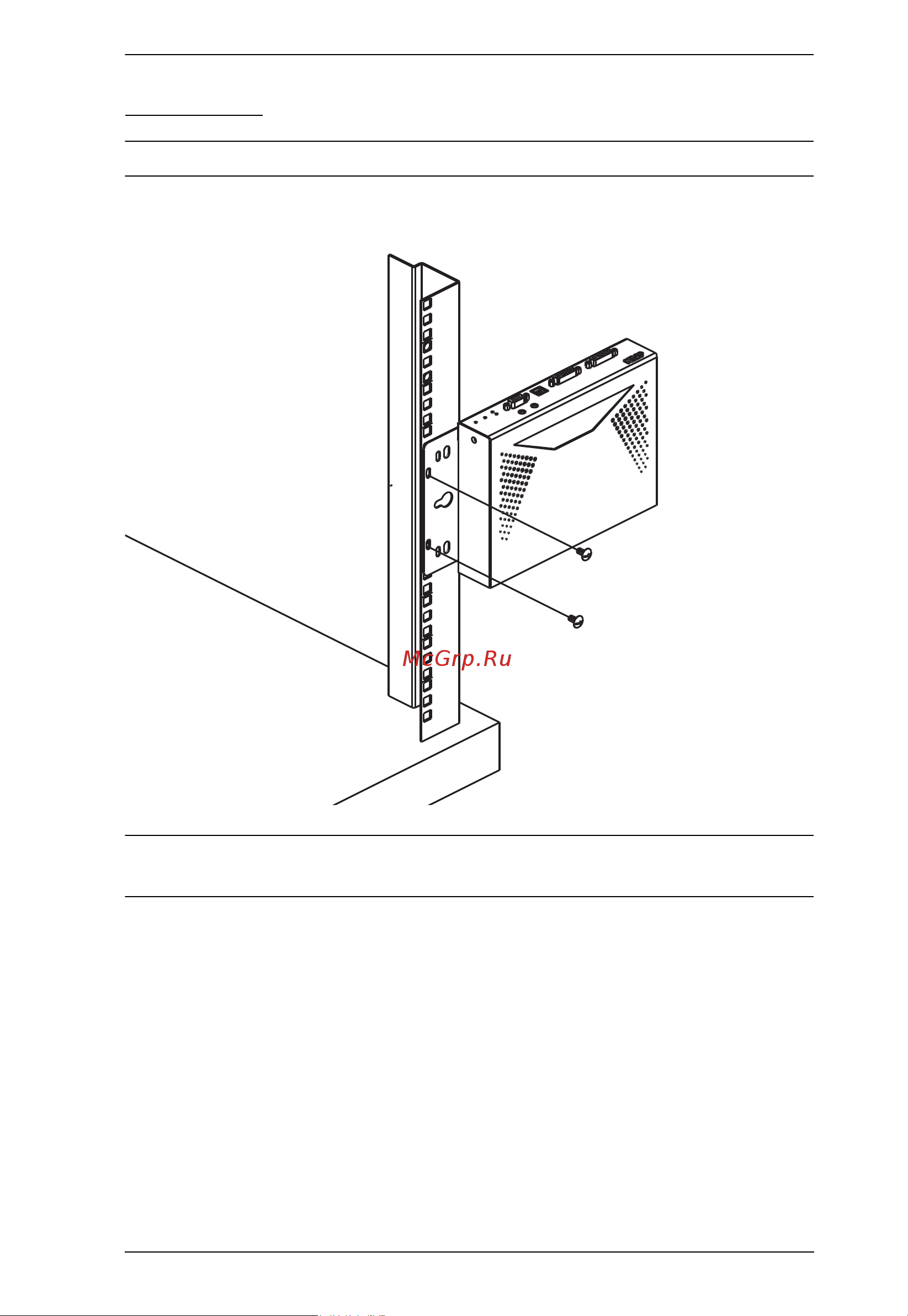

Screw the bracket into a convenient location on the rack.

Note: Rack screws are not provided. We recommend that you use M5 x 12

Phillips Type I cross recessed screws.
