Aten RCMDVI40BT [147/297] Receiver configuration
![Aten RCMDVI40BT [147/297] Receiver configuration](/views2/1977522/page147/bg93.png)
Chapter 7. System Status
131

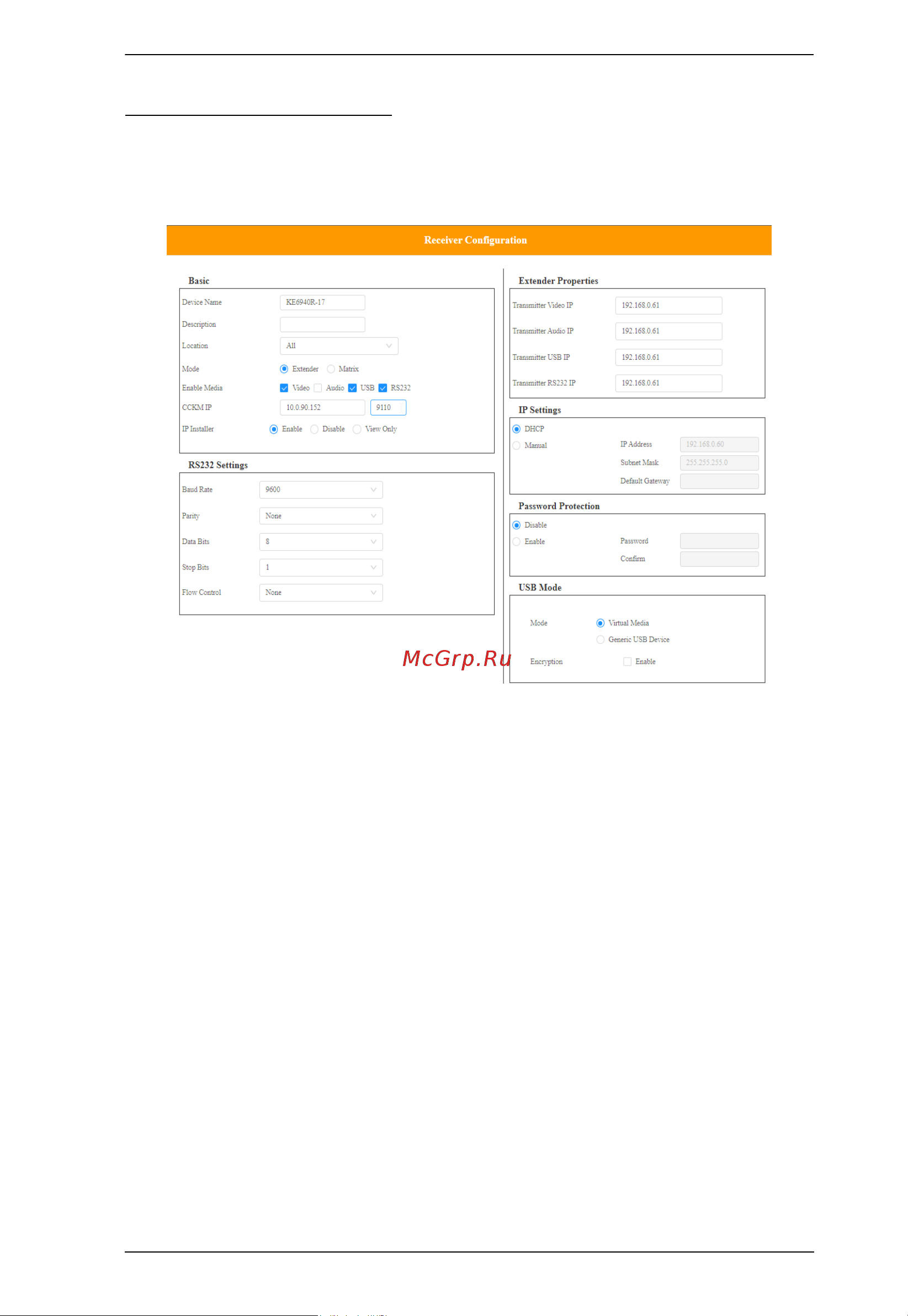

Receiver Configuration
When the KVM over IP Matrix Manager discovers receivers on the network
they appear on the Receiver settings page. Double-click a receiver to configure
its settings.
