Aten RCMDVI40BT [89/297] Osd matrix mode

Chapter 4. OSD Operation

OSD Matrix Mode

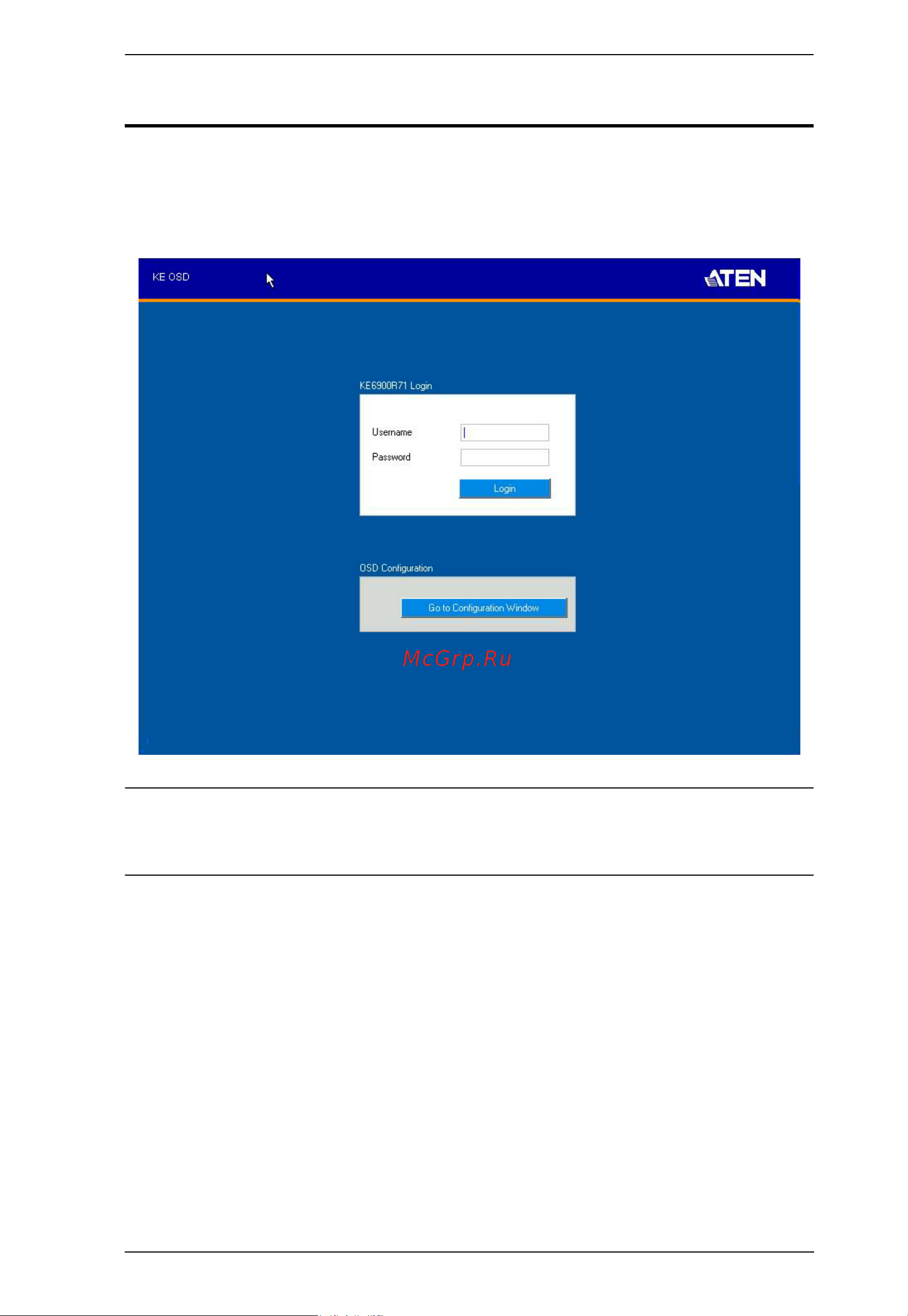

If you set the system to Matrix mode (in Properties), you will see the System

Connection Page by entering a username and password:

Note: 4. If the receiver does not require a login, click Login to system. For

information about Extender and Desktop/Matrix modes, see Mode,

page 60.

After you log in, the Connection Page appears, as shown on the next page.
