Aten RCMDVI40BT [90/297] Connections page

RCM KVM over IP Transmitter User Manual

Connections Page

List Mode

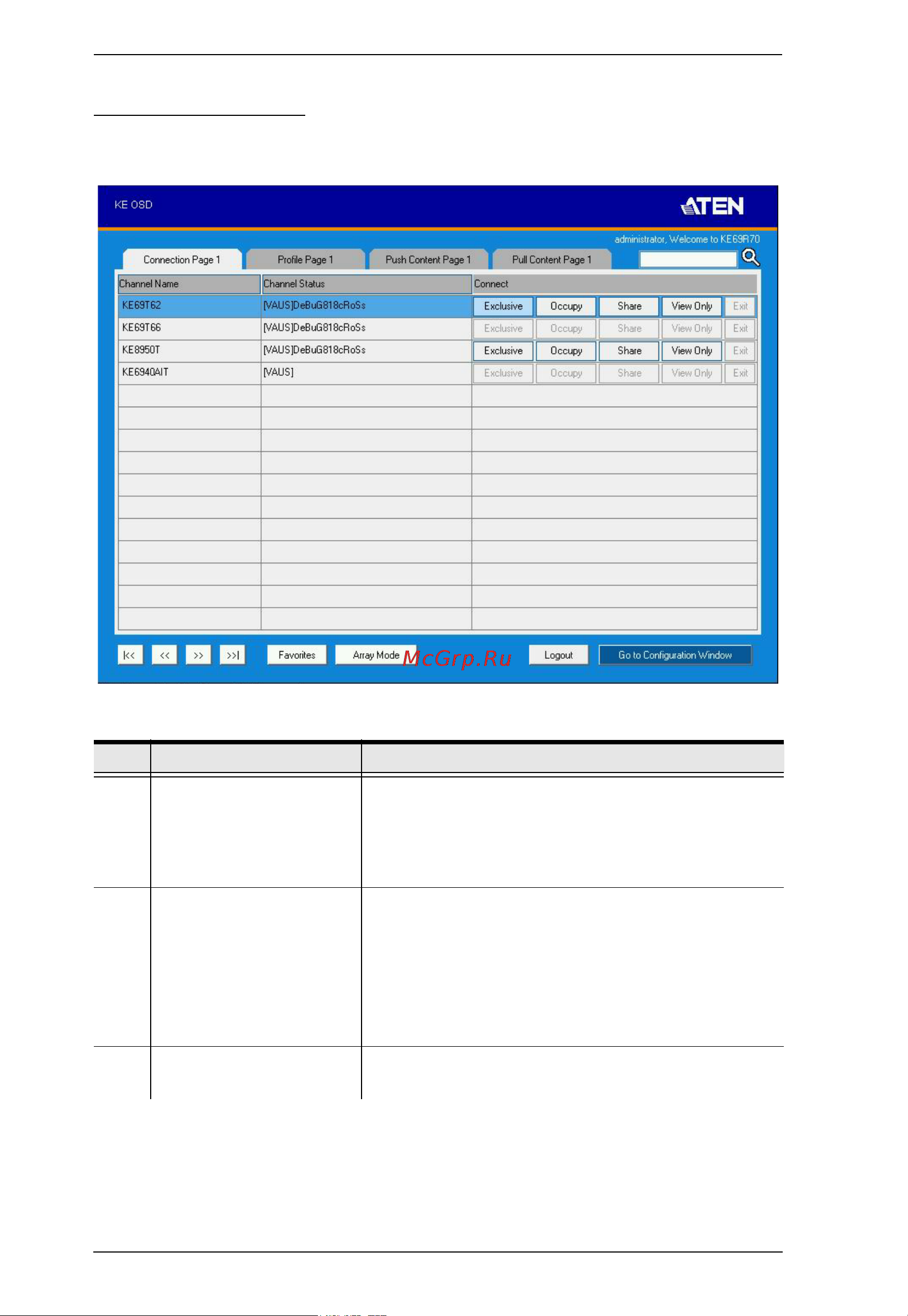

The Connection Page components are described in the table below:

No. Item Description

1 Channel Name Lists the channel connections available for the

receiver. A channel is a defined connection to

transmitters, created in the Device Management tab

of the KVM over IP Matrix Manager (see Browser /

Telnet Operation, page 93).

2 Channel Status This field provides the status information of the

channel, including the device name of the

receiver(s) currently accessing and its operation

mode.

Operation modes are abbreviated as S, O, E and E

for Share, Occupy, Exclusive and View Only,

respectively.

3 Search Search for transmitters based on the keyword(s)

entered.
