Chapter 1. Introduction
17

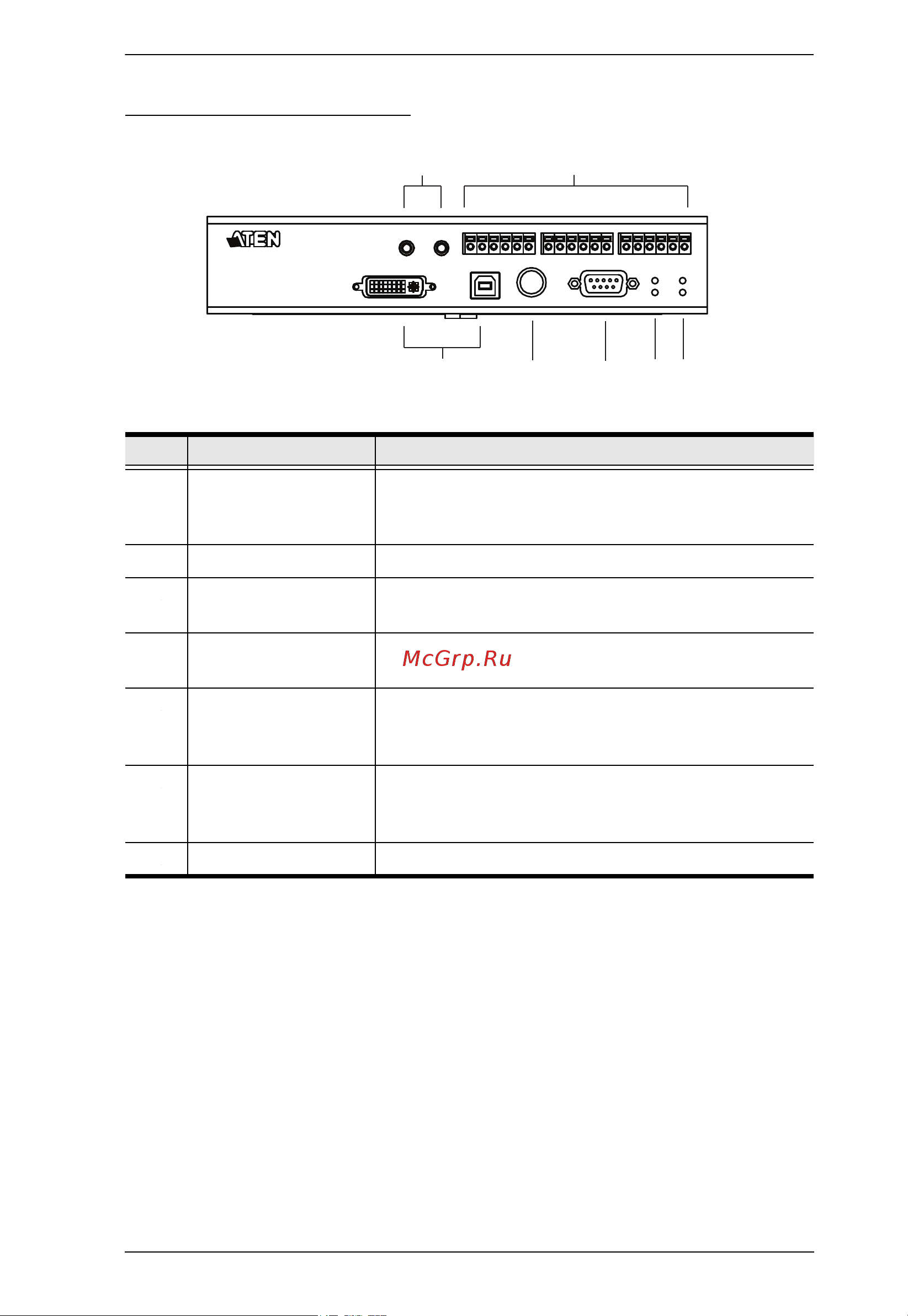

RCMDVI00BT Front View
No. Component Description
1 audio ports These mini stereo ports are for connecting to the
speakers (green) and microphone (pink) ports of the
PC / workstation.
2 DI / relay Connects to stack light or temperature sensor.
3
KVM ports The USB Type-B, DVI-D KVM cable supplied can link
the transmitter to the PC / workstation to be controlled.
4 access control port Connects to the KVM over IP Access Control Box
(2XRT-0015G).
5
RS-232 port This RS-232 serial port is for connecting to the PC /
workstation for serial control or for connecting to a
KVM over IP Access Control Box (2XRT-0015G).
6
remote / local LED Lights green to indicate which side of the installation
(local or remote) currently has KVM control of the PC /
workstation.
7
power LEDs Lights blue to indicate the unit is turned on.
1
4
5
6
7
3
2
