Chapter 4. OSD Operation
59
Receiver Configuration

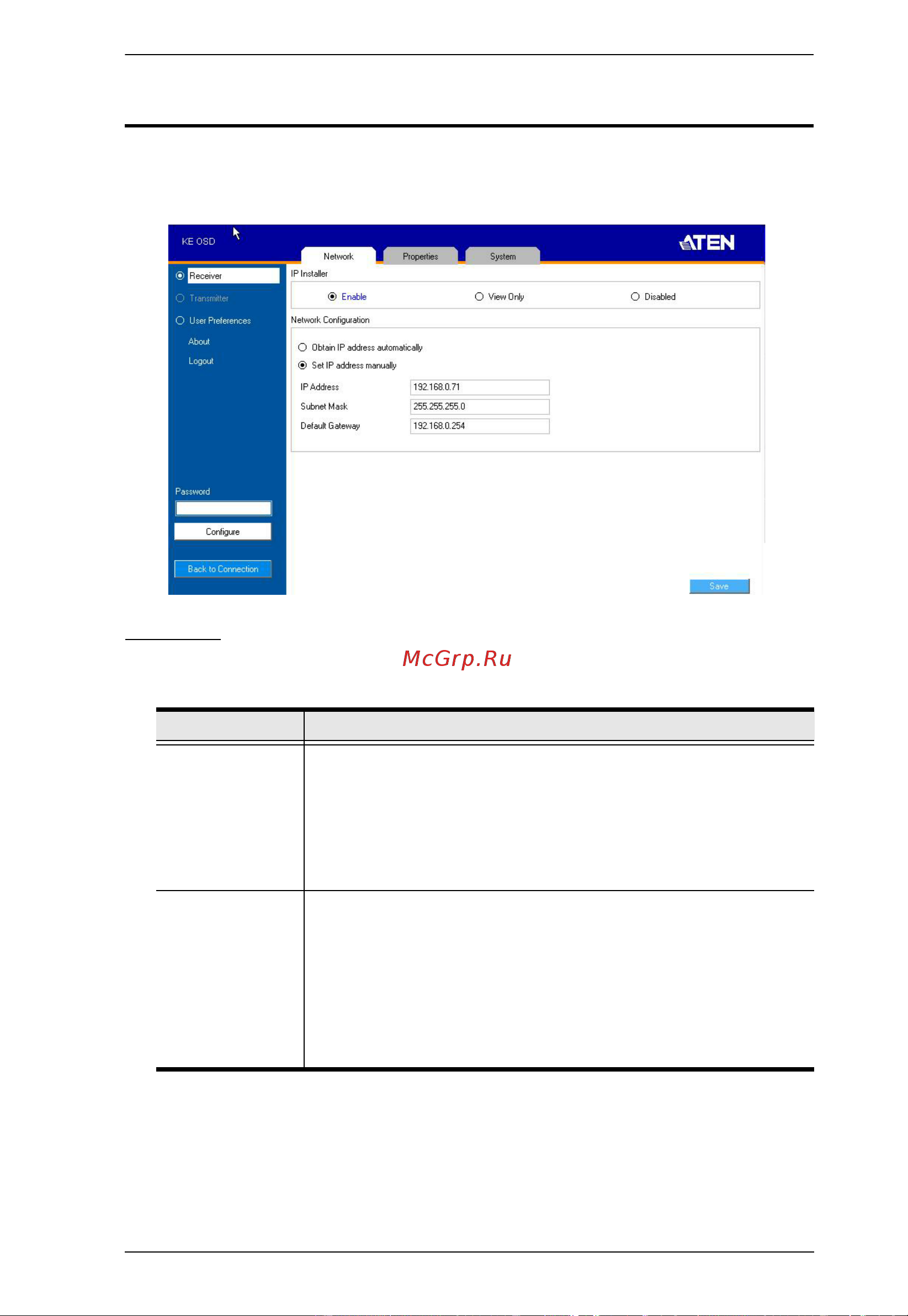

Select the Receiver radio button and click Configure to login, the Network tab
appears:
Network
The Network tab allows you to configure the receiver’s IP address settings:
After entering the information, click Save.
Item Description
IP Installer The IP Installer is an external Windows-based utility for
assigning an IP address to the device. Click one of the radio
buttons to select Enable, View Only, or Disable for the IP
Installer utility. See IP Installer, page 263 for instructions.
Note: For security, we strongly recommend that you set this to
View Only or Disable after each use.
Network
Configuration
For dynamic IP address assignment (DHCP), select the Obtain
IP address automatically radio button.
To specify a fixed IP Address, Subnet Mask, and Default
Gateway select the Set IP address manually radio button and
fill in the fields with values appropriate for your network.
For help configuring network settings with the OSD, see
Network Configuration, page 46.
