RCM KVM over IP Transmitter User Manual
36
and the receiver to a local area TCP/IP network. Refer to the diagrams on the
following page and connect accordingly.
Repeat these steps for each transmitter and receiver you wish to install on the
network then power on the computer(s).
Note: 1. If you wish to use CCVSR and/or remote access with WinClient /
JavaClient, you will still need to connect the remote port of the
RCMDVI00AT / RCMDVI40AT to an Office LAN.
2. It is highly recommended that the units are mounted on a system rack
or on a wall and avoid stacked setup to ensure proper ventilation

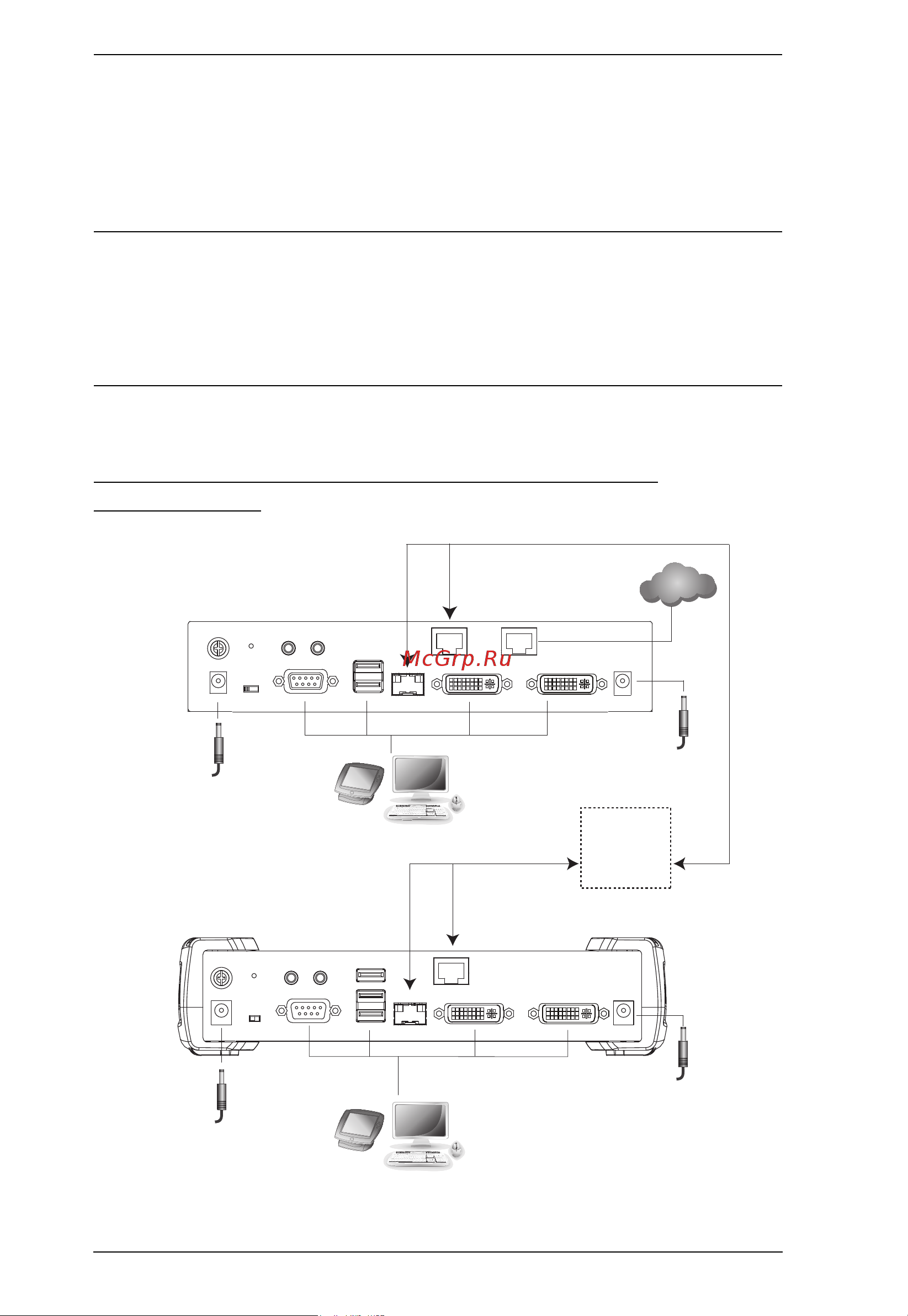

RCMDVI00AT / RCMDVI40AT Network Installation
Diagram 1 of 2
KE6940AR (Rear)
RCMDVI40AT (Rear)
Cat 5e/6 cable
Optical Fiber Cable
Cat 5e/6 cable
Optical Fiber Cable
DC 12V
DC 5V
Serial
Device
Serial
Device
Office LAN
DC 12V
DC 5V
TCP/IP
LAN
