Chapter 4. OSD Operation
77
Array Mode

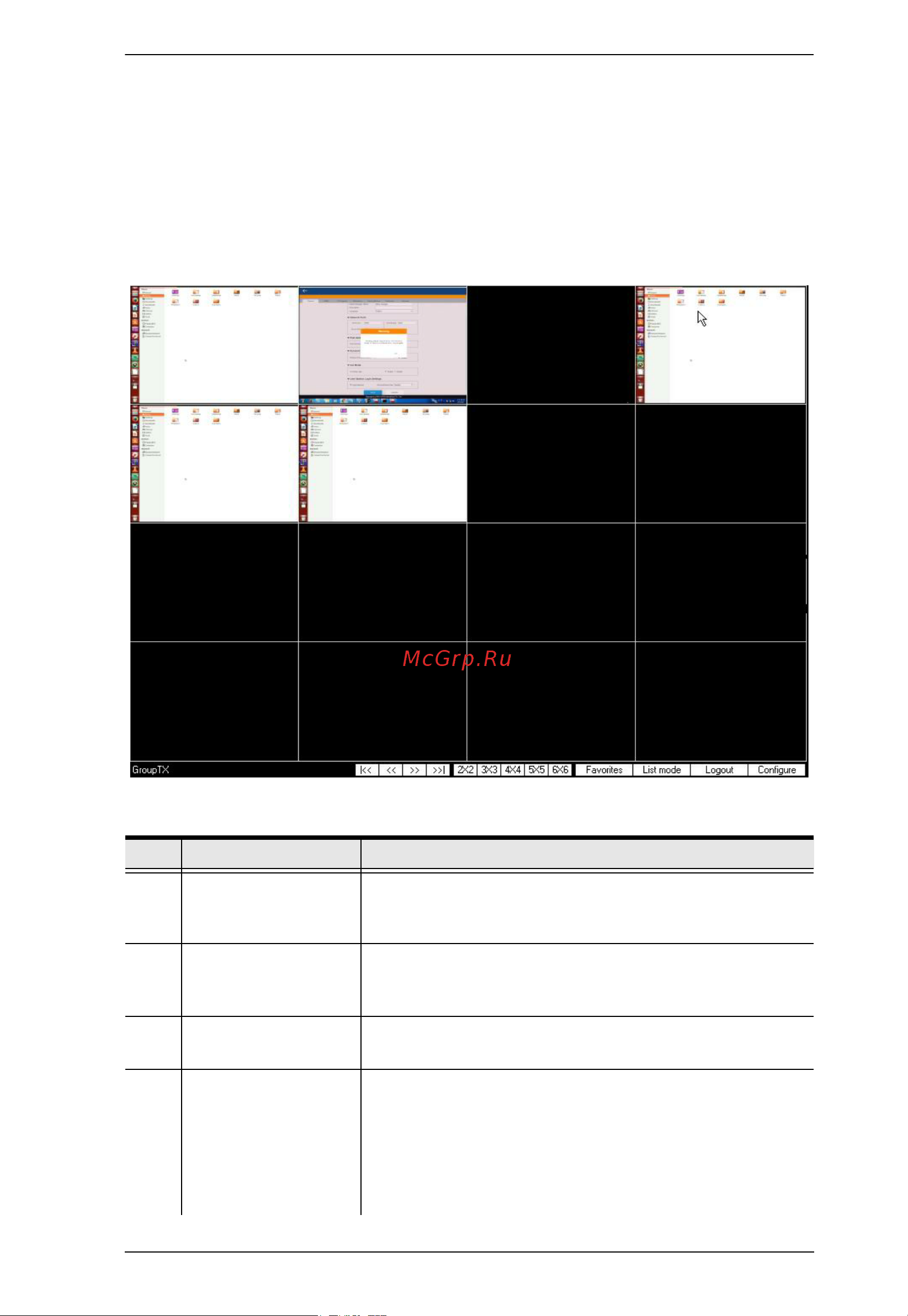

In Array Mode, the screen is divided into a grid of panels, with each panel
showing the video display of a particular channel. Right-click a panel and
select a mode to connect: E: Exclusive, O: Occupy, S: Share, V: View Only,
X: Exit. While video is displayed when the mouse cursor hovers over it, any
audio sent from the transmitter will be heard by the receiver.
No. Item Description
1 Next Arrow Use these two buttons to navigate to the next page or to
the end of the list if there are more channels available
than can be seen on the page.
2 Previous Arrow Use these two buttons to navigate to the previous page
or to the beginning of the list if there are more channels
available than can be seen on the page.
3 Grid Selection Select a range for how many channels you want to
display. Options are: 2x2, 3x3, 4x4, 5x5, and 6x6.
4 Favorites Click Favorites to list only the channels marked as
favorites. Click All to list all channels.
To add/remove a Favorite, go to List Mode, select a
channel and then right-click with the mouse to select
Add to Favorite or Remove from Favorite.
Note: Up to 50 channels can be marked as Favorites.
