RCM KVM over IP Transmitter User Manual
180
Connections

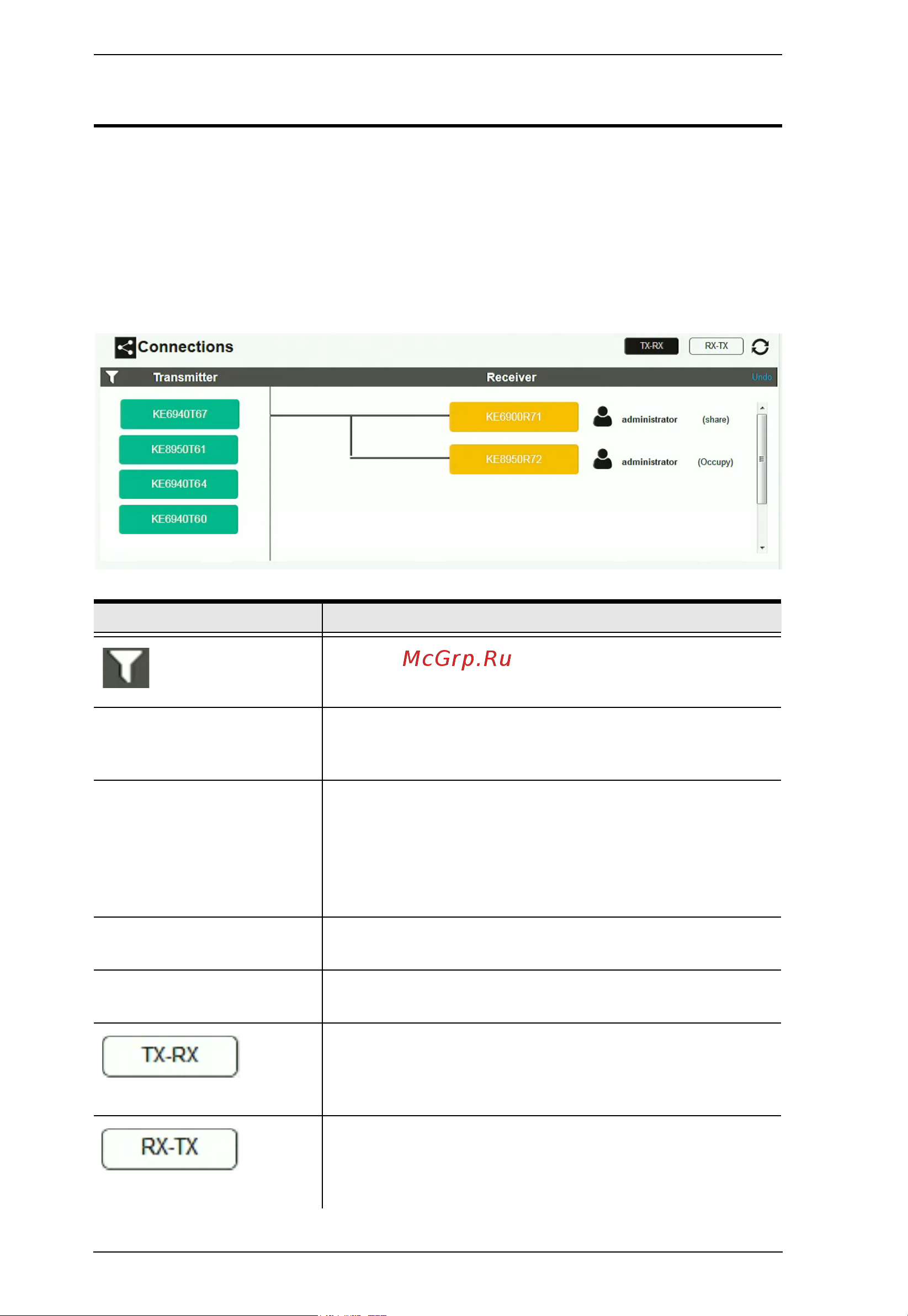

When receivers connect to transmitters, they appears in the Connections panel.
There are two columns – each lists either Transmitters or Receivers. The
columns can be swapped by clicking the TX-RX or RX-TX button. Devices in
the left column can be clicked to display their connection to devices, shown in
the right column. Connections, shown in the right column, can be disconnected
by clicking the
X
over the connection diagram.
Item Description
On the heading bar under Connections, click this icon to
change the sort order of the transmitters or receivers
listed in the left column.
Left Column Click a device in the left column to view its connection in
the right column. A diagram to its connected device(s)
appears in the right column.
Right Column The right column displays a connection diagram when a
device in the left column is selected. Move the mouse
cursor over the diagram and click
X
to disconnect the
devices. This column also shows the user and access
type (Exclusive, Occupy, Share, View Only) used to
establish the connection.
Transmitter Lists transmitters that are online and connected to
receivers.
Receiver Lists receivers that are online and connected to
transmitters.
Click to view transmitter-to-receiver connections. This will
list transmitters in the left column so that they can be
selected to view their connection diagram, shown in the
right column.
Click to view receiver-to-transmitter connections. This will
list receivers in the left column so that they can be
selected to view their connection diagram, shown in the
right column.
