Chapter 1. Introduction
21

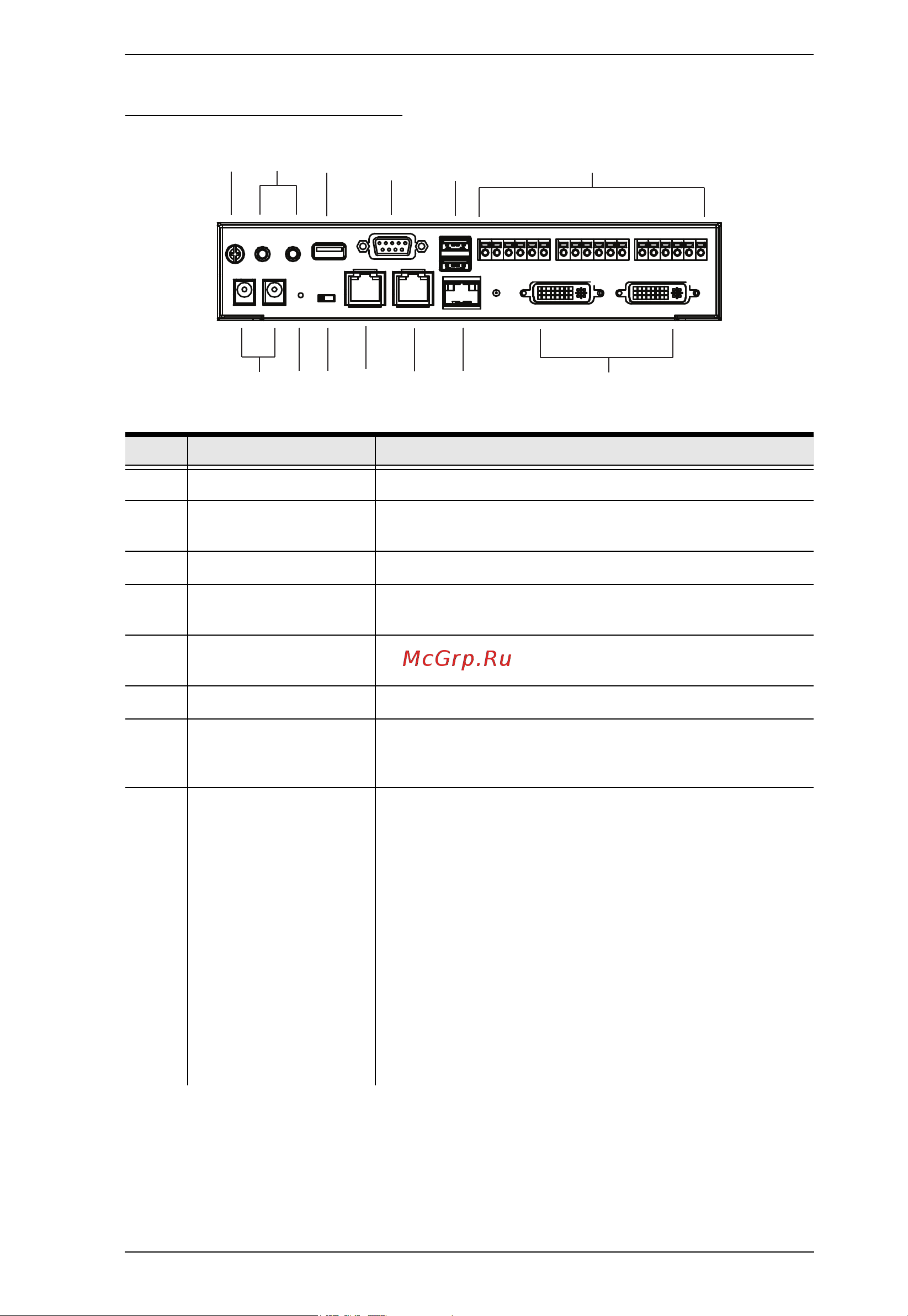

RCMDVI40BT Rear View
No. Component Description
1 grounding terminal The wire used to ground the unit connects here.
2 audio ports These mini stereo ports can connect to speakers
(green) and a microphone (pink).
3 USB Type-A port Connects to USB peripherals.
4 RS-232 port This RS-232 serial port is for connecting to a serial
terminal.
5 USB ports (console) The unit’s USB keyboard and USB mouse plug into
these ports.
6 DO / relay Connects to electric door lock or alarm.
7 power jacks The cable from the DC power adapter connects here.
Connect both power jacks to a power source for power
redundancy.
8 reset button This reset button must be pushed with a thin object,
such as the end of a paper clip.
Press and release to reboot the device.
Power off, hold reset then power on the device
while pressing reset to recover from a firmware
upgrade failure.
Press and hold it in for more than three seconds
resets the unit back to its factory default
settings*.
Note: The Reset to Factory Default function resets everything
but the login information (username/password) to the factory
default settings. To reset the login information, refer to Reset
All Information on page 266.
9
10
4
3
2
12
1
7
6
5
8
11
13
