RCM KVM over IP Transmitter User Manual
78
Profile Page

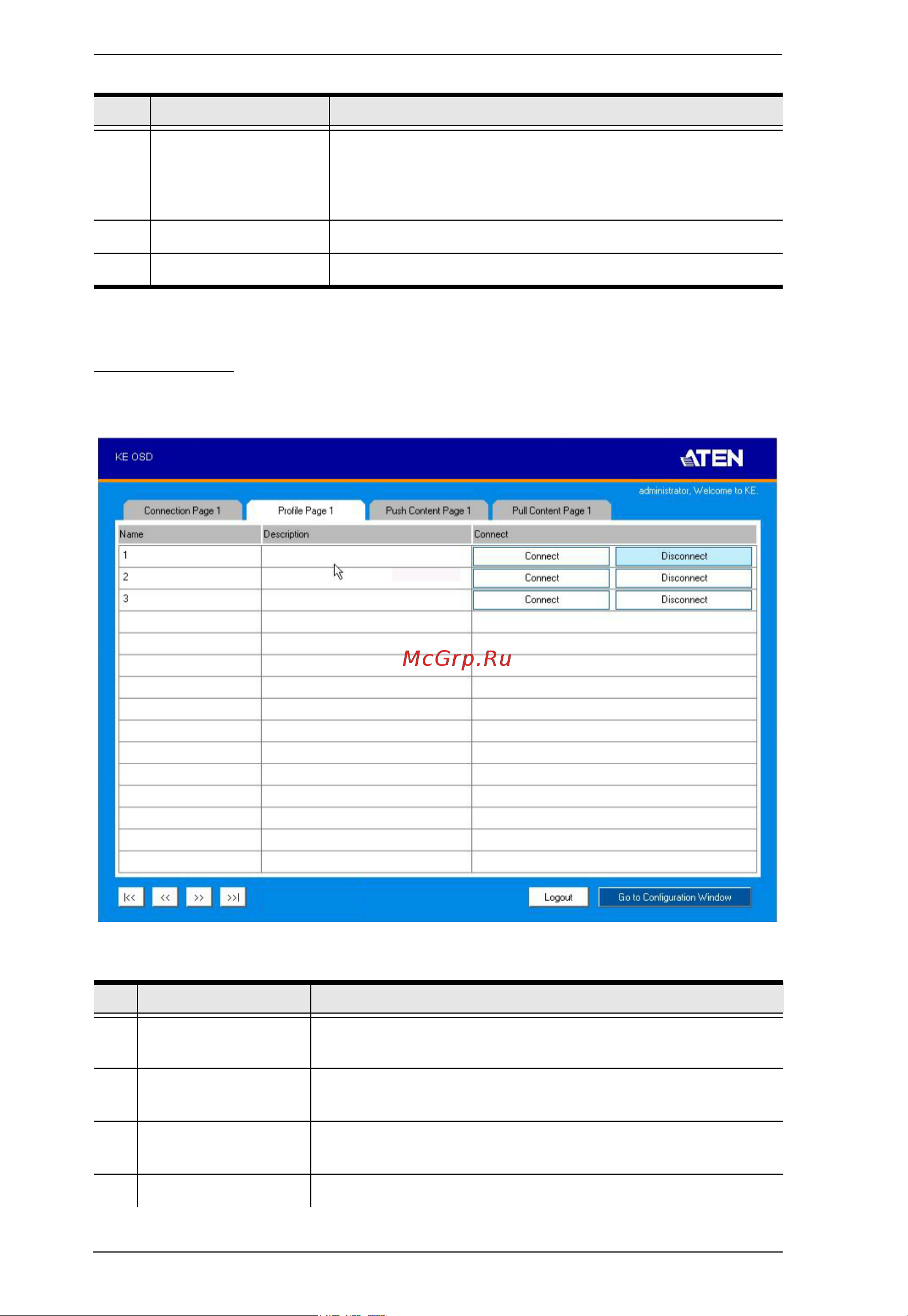

Click the Profile Page tab and the following screen appears:
The Profile Page components are described in the table below:
5 List Mode Click to view the channel connections in a list that can
be sorted by name or with favorites listed first. Click the
Channel Name heading to change the sort. List Mode is
discussed on page 75.
6 Logout Click this button to log out of the Connection Page.
10 Configure Click this button to return to the main OSD screen.
No. Item Description
1 Name Lists the Profiles available. Profiles give receivers access
to channels and allow you to push the connection.
2 Description The field provides a description of the Profile that was
entered when it was created.
3 Connect Click Connect and the receiver will connect with the
settings of that Profile (see Adding a Profile, page 149).
4 Disconnect Click Disconnect to end the current Profile connection.
No. Item Description
