RCM KVM over IP Transmitter User Manual
126
Transmitter Group
Creating a Transmitter Group allows you to create a connection that sources
the video from multiple transmitters to be viewed across multiple receiver
displays. To use this feature, connect a Transmitter Group to a Receiver
Group (page 135). Transmitter Groups appear at the bottom of the Transmitter
settings page.
To create a Transmitter Group, in Transmitter settings, click and then
select Create Group TX.

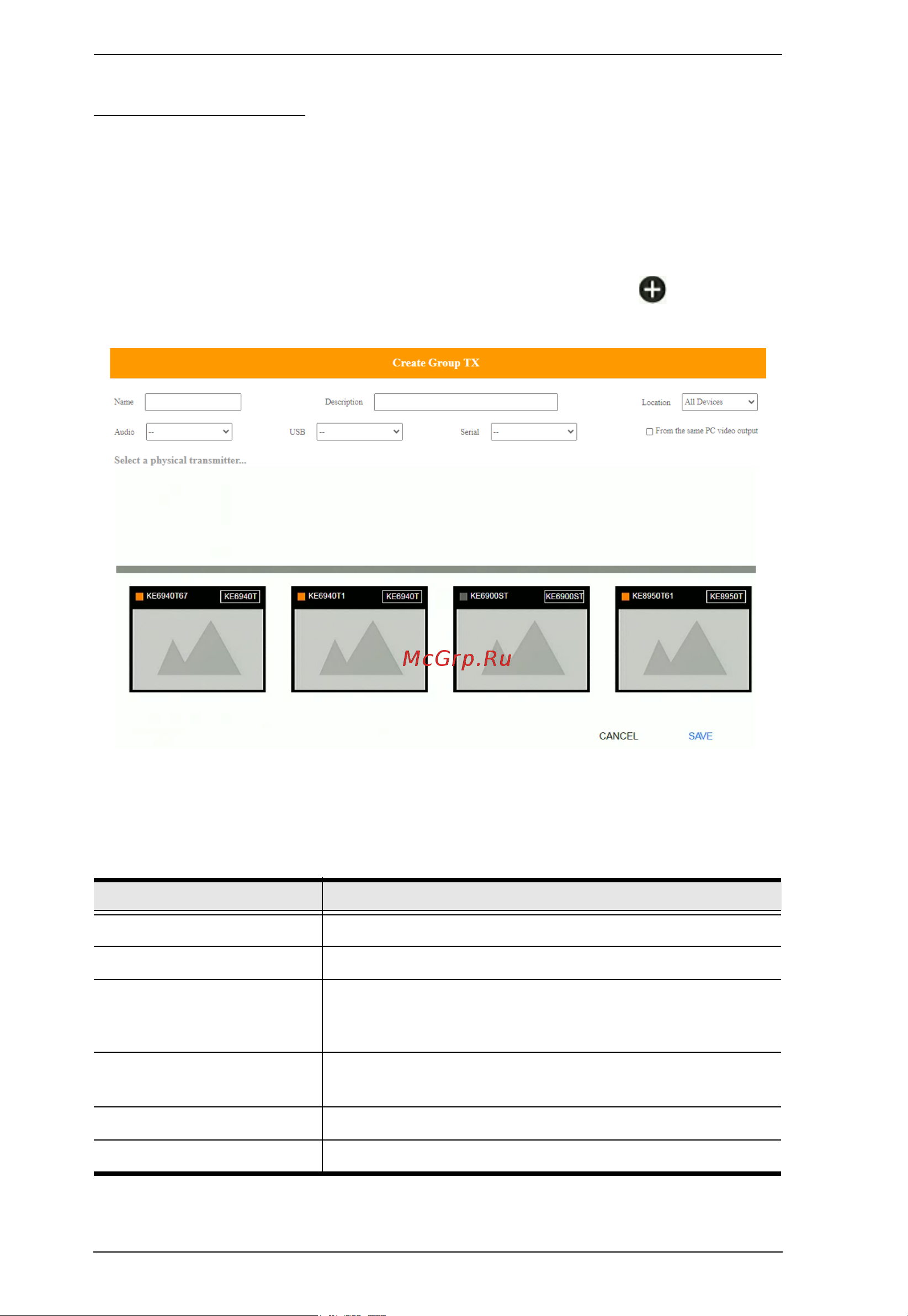

Fill in the appropriate information and then double-click or drag-and-drop
transmitters to add or remove them in the top panel. The transmitters in the top
panel will be used as the video source for the Receiver Group at the receiver.
Item Description
Name Enter a name for the Transmitter Group.
Description Enter a description for the Transmitter Group.
Location Use the drop-down menu to select a location for the
Transmitter Group or leave as All Devices. See Location,
page 110, for details.
From the same PC video
output
Enable to indicate that all of the video outputs in this
Transmitter Group are from the same multi-screen PC.
Save Click Save to save the changes.
Cancel Click Cancel to exit without saving.
