RCM KVM over IP Transmitter User Manual
124
Virtual Transmitter
Creating a Virtual Transmitter allows you to create one connection that sources
media (KVM, audio, USB, serial) from different transmitters. Virtual
Transmitters appear on the Transmitter settings page with Virtual TX in the
top right corner. Simply select an online transmitter for each media source.
dual-display transmitters can be added as two separate Virtual Transmitters.

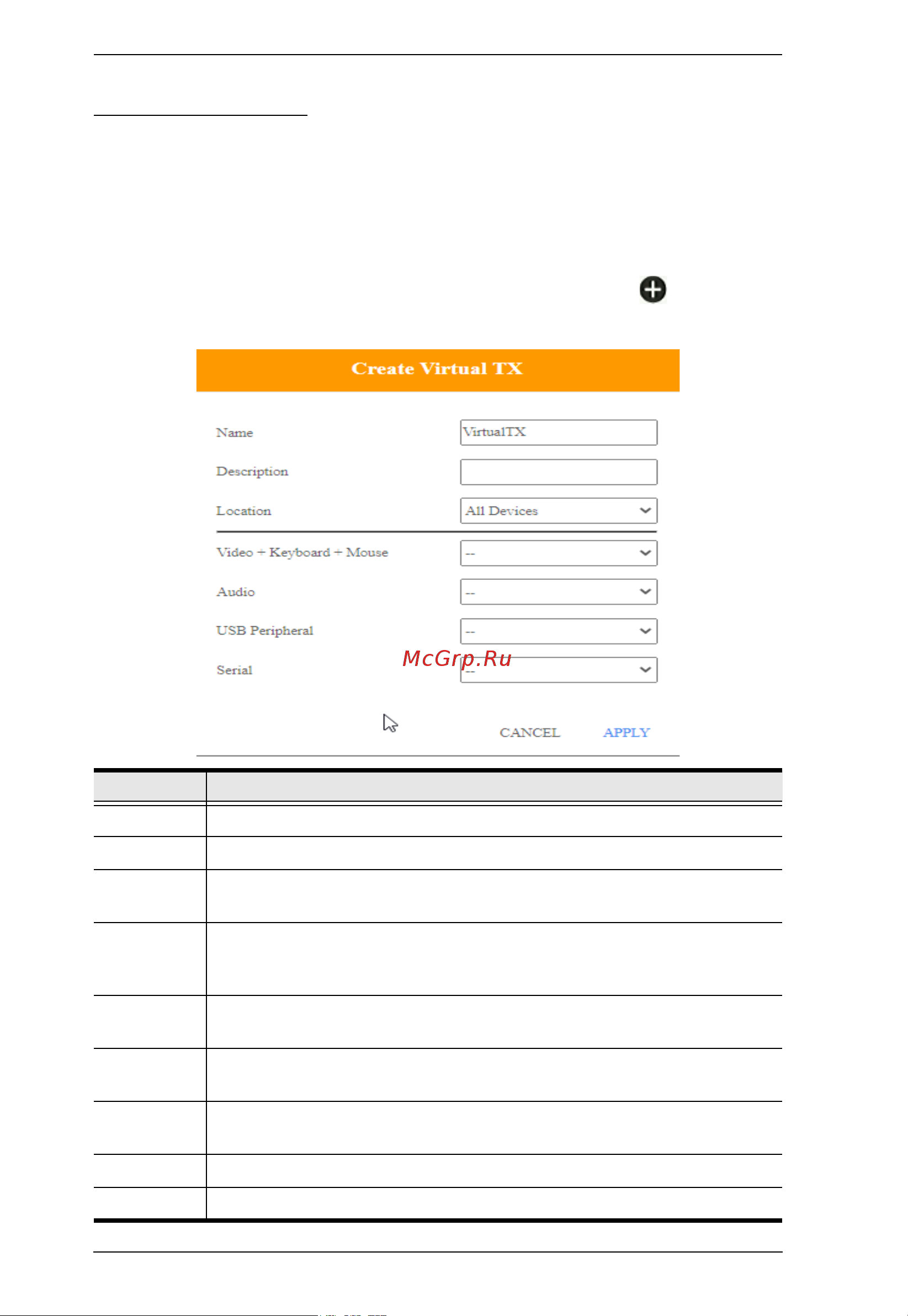

To create a Virtual Transmitter, in Transmitter settings click and then
select Create Virtual TX.
Item Description
Name Enter a name for the Virtual Transmitter.
Description Enter a description for the Virtual Transmitter.
Location Use the drop-down menu to select a location for the Virtual Transmitter
or leave it as All Devices. See Location, page 110, for details.
Video +
Keyboard +
Mouse
Use the drop-down menu to select a KVM (keyboard, video, mouse)
source for the Virtual Transmitter.
Audio Use the drop-down menu to select an audio source for the Virtual
Transmitter.
USB
Peripheral
Use the drop-down menu to select a USB peripheral source for the
Virtual Transmitter.
Serial Use the drop-down menu to select a serial source for the Virtual
Transmitter.
Apply Click Apply to save the changes.
Cancel Click Cancel to exit without saving.
