RCM KVM over IP Transmitter User Manual
60
Properties

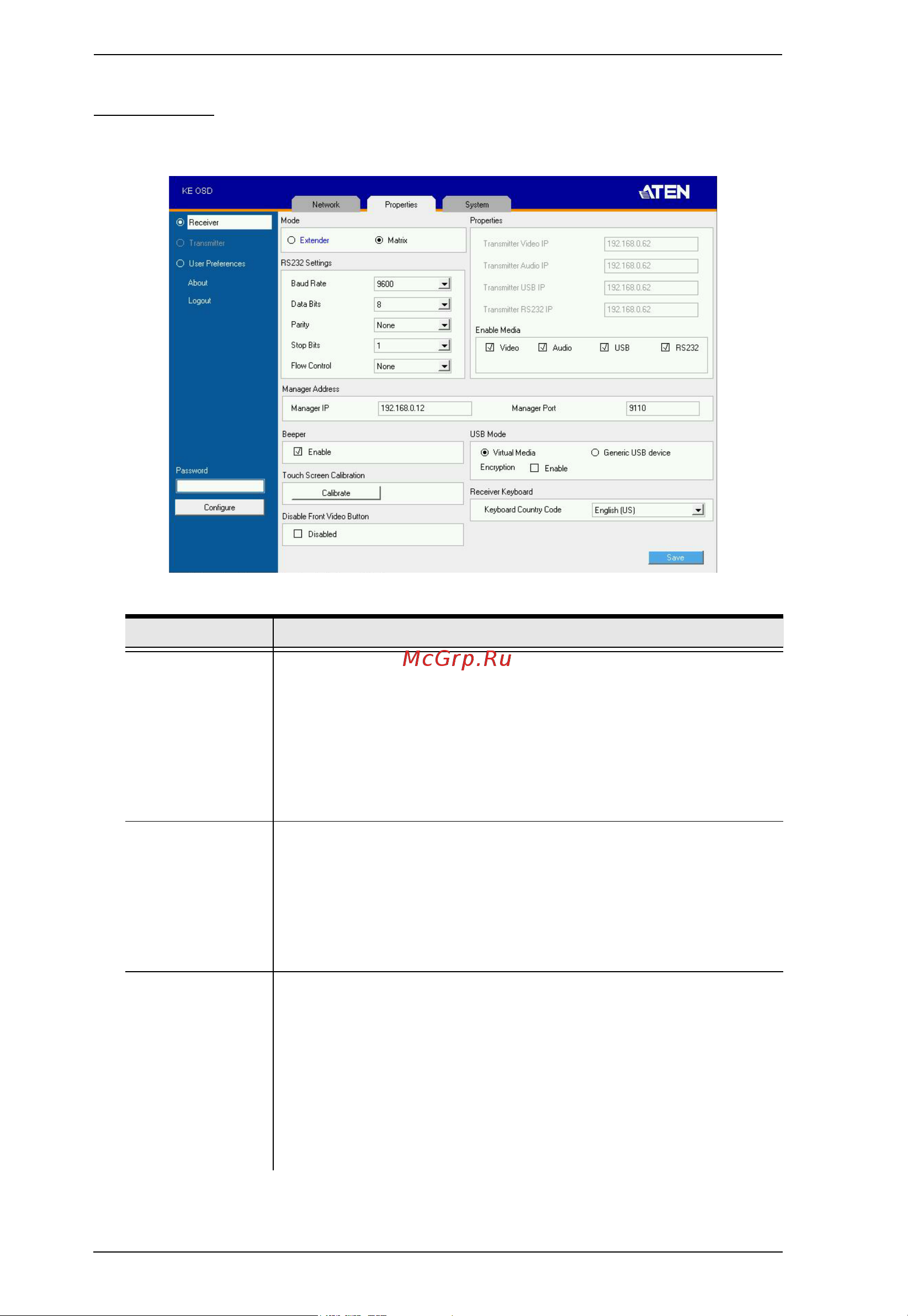

The Properties tab allows you to configure the receiver’s settings.
Item Description
Mode Select Extender mode for simple one-to-one (transmitter to
receiver) setups that are managed with the receiver’s OSD
menu.
Select Matrix mode to manage devices and connections from
the KVM over IP Matrix Manager web GUI. This mode is for
advanced administration of Transmitter to receiver connections
(see Browser / Telnet Operation, page 93).
Properties If you selected Extender mode (above) set the RCM
transmitter’s IP address as the source of video, audio, USB,
and RS-232 source signals, to be sent to the receiver.
If you selected Matrix mode (above) the Properties will be
grayed out. Use Channels to configure the transmitter
connections (see Browser / Telnet Operation, page 93).
RS-232 Settings Configure the serial device settings for the receiver. The default
settings are:
Baud Rate: 9600
Parity: None
Data Bits: 8 bits
Stop bits: 1 bit
Flow Control: None
