RCM KVM over IP Transmitter User Manual
258

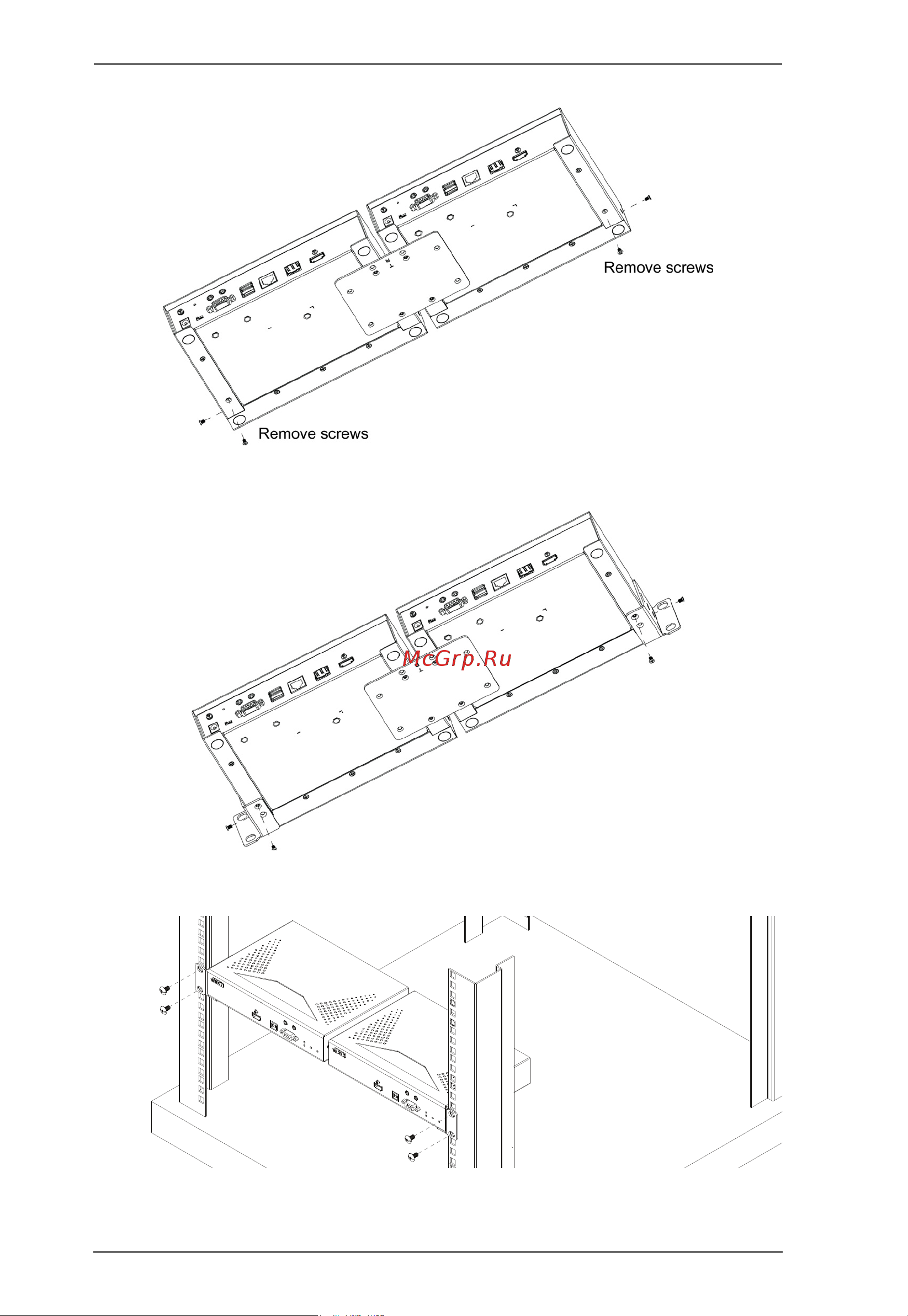

3. Use the screws in step 2 to install the left and right mounting brackets.
4. Screw the mounting brackets to the rack.
