Chapter 5. Software Installation

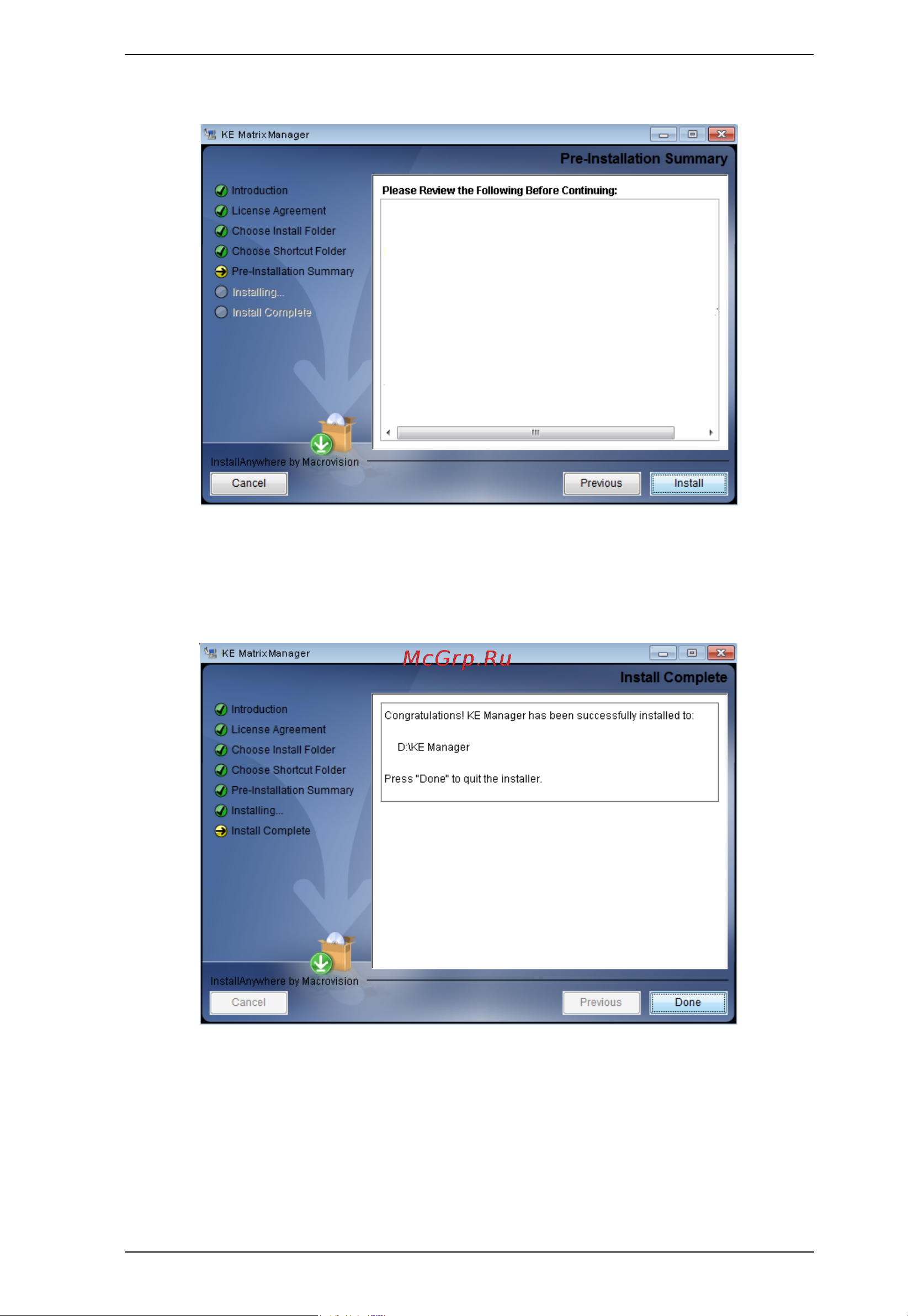

6. The Pre-Installation Summary screen appears:

Confirm the settings you’ve selected. If you want to make a change

click Previous to go back, or click Install to begin the software

installation.

7. When the process is done, the Install Complete screen appears:

Click Done.
