Chapter 5. Software Installation
91

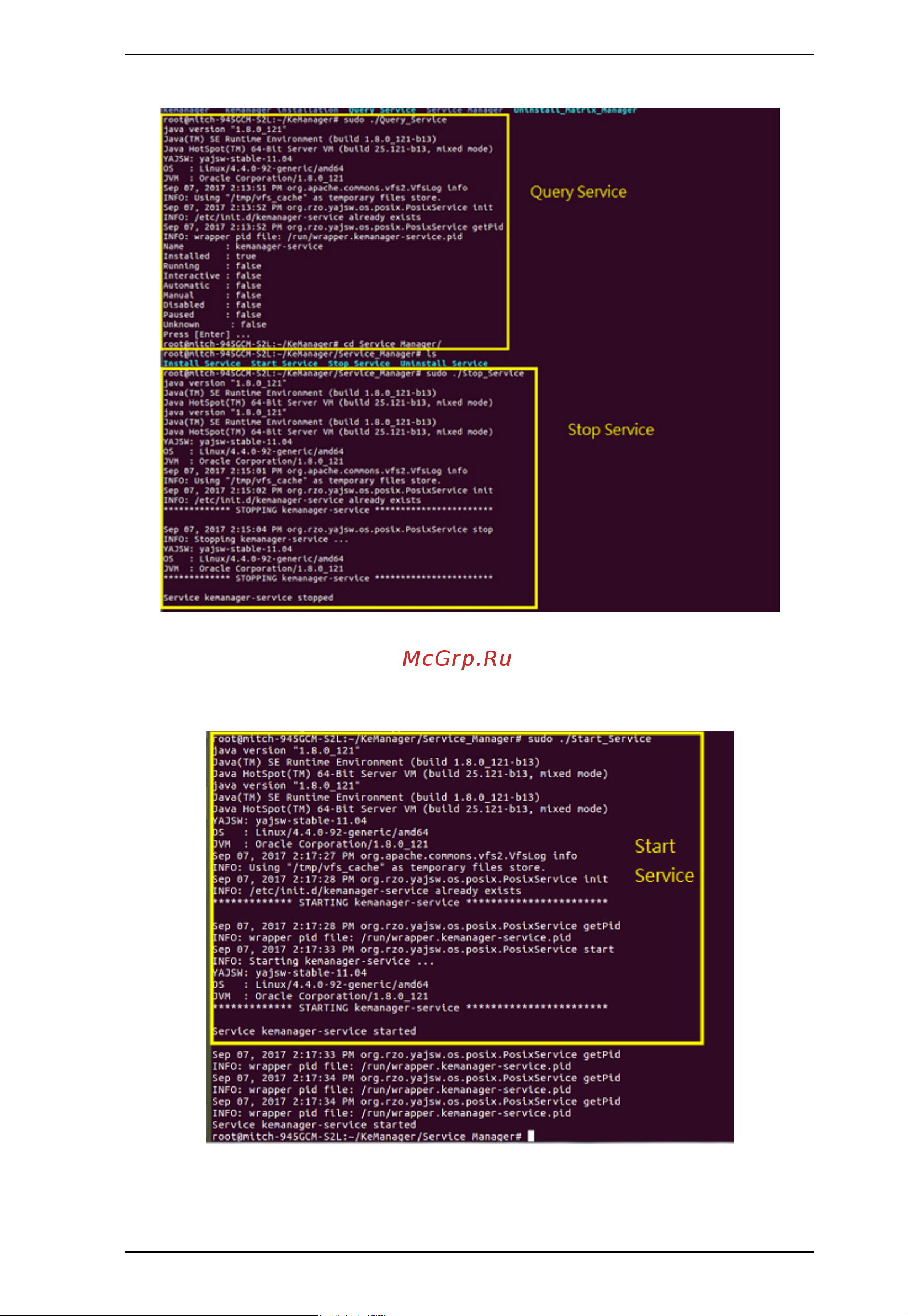

10. To check and start the KVM over IP Matrix Manager service, use the
following commands:
cd KeManager sudo ./Query_Service
Stop service:
sudo ./Start_service
