RCM KVM over IP Transmitter User Manual
98

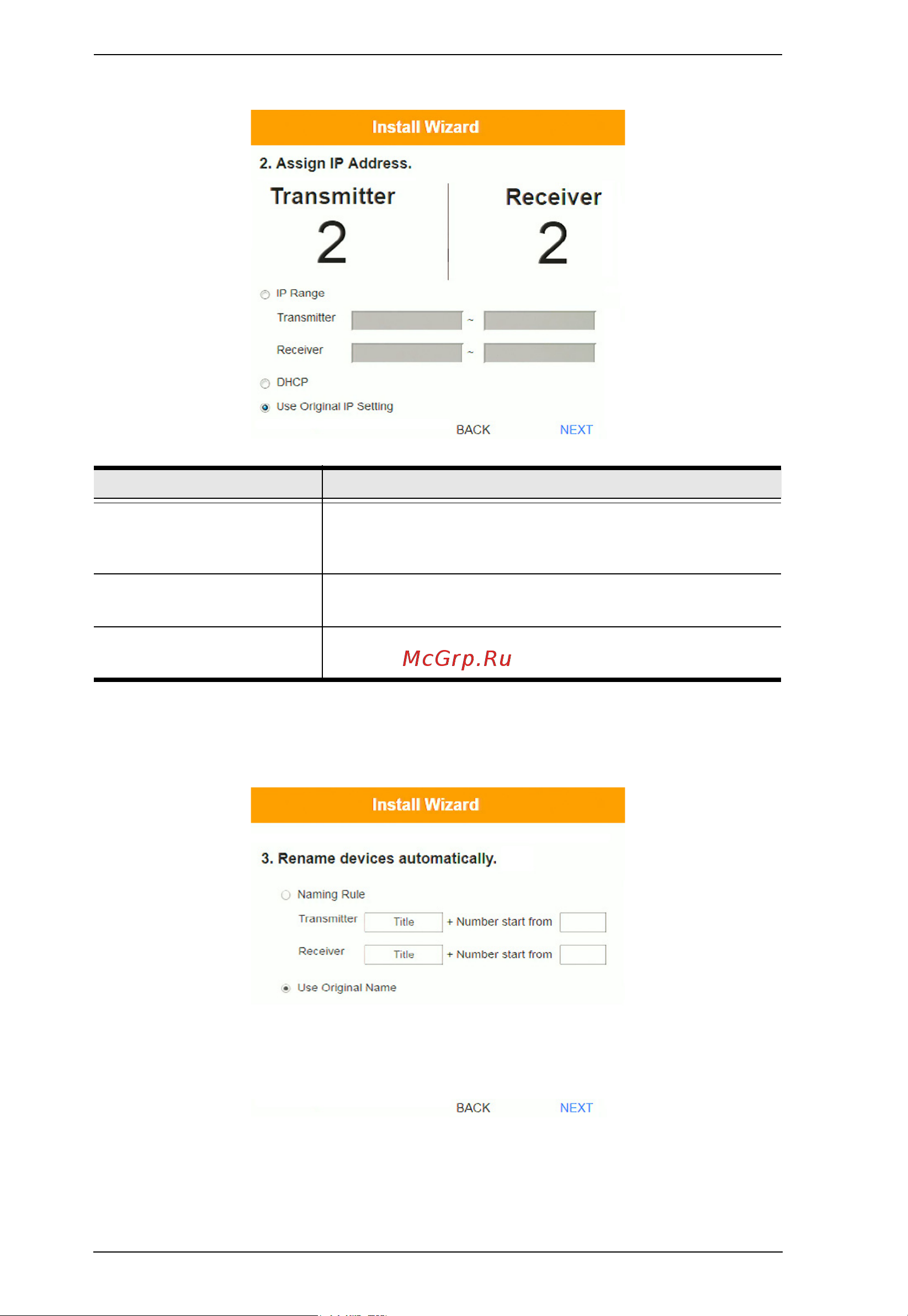

6. Use the Naming Rule radio button to create a naming convention (Title +
Number); or Use Original Name to use the name currently configured on
the transmitter / receiver, then click Next.
7. Confirm each Transmitter’s Name, IP Address, Audio setting and check
the boxes to set Permissions*, then click Next and repeat the process for
Receivers.
Item Description
IP Range Select the IP Range radio button to enter a series of
static IP addresses to assign to the transmitters/receivers
that you are adding.
DHCP Select the DHCP radio button for dynamic IP address
assignment.
Use Original IP Setting Select this radio button to use the IP address currently
configured on the transmitter / receiver.
