RCM KVM over IP Transmitter User Manual
116
Internet Port

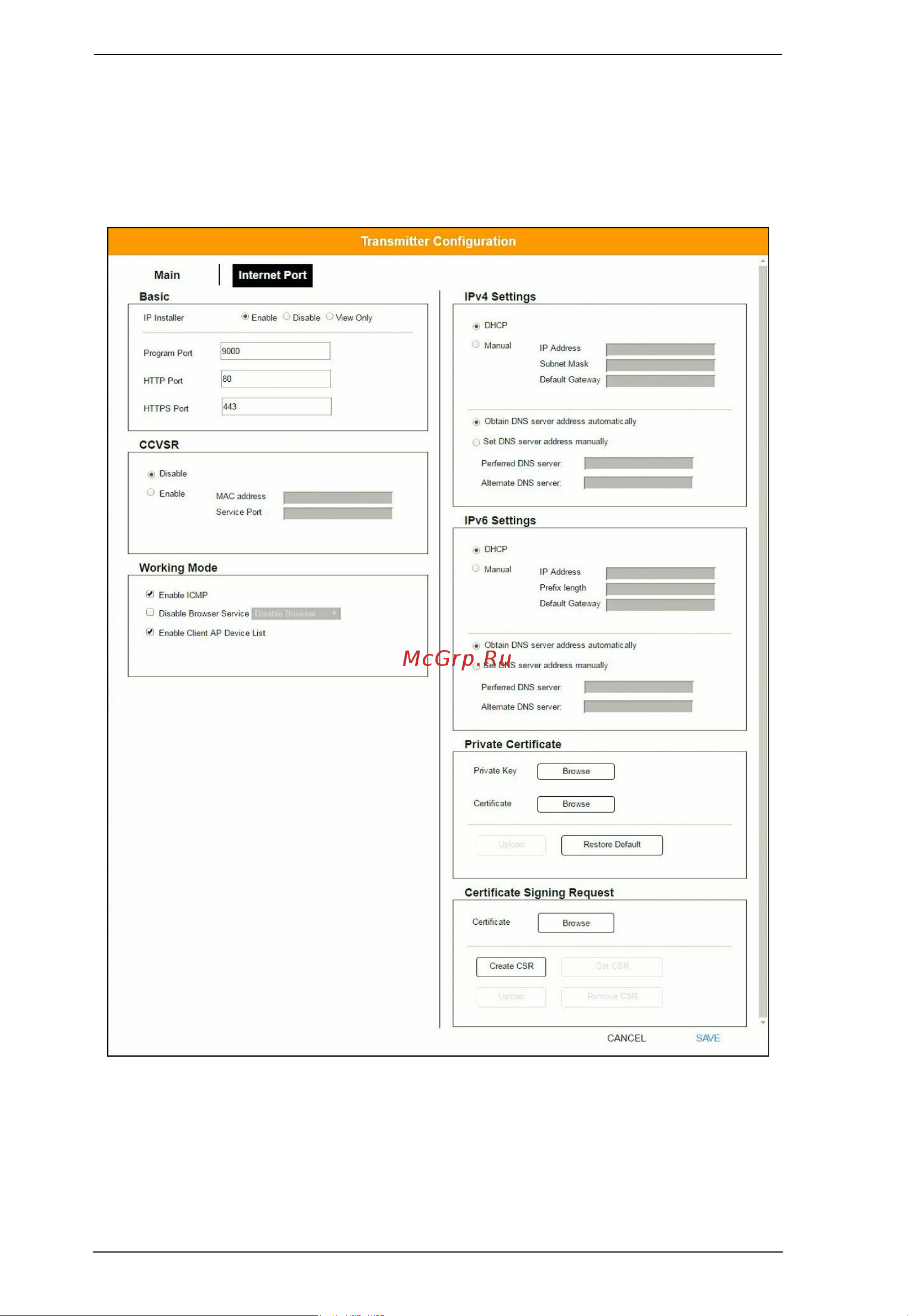

The Internet Port tab is used to configure the remote port of the
RCMDVI00AT / RCMDVI40AT / RCMDVI00BT / RCMDVI40BT /
RCMDVI50T.
