Chapter 8. System Settings
159

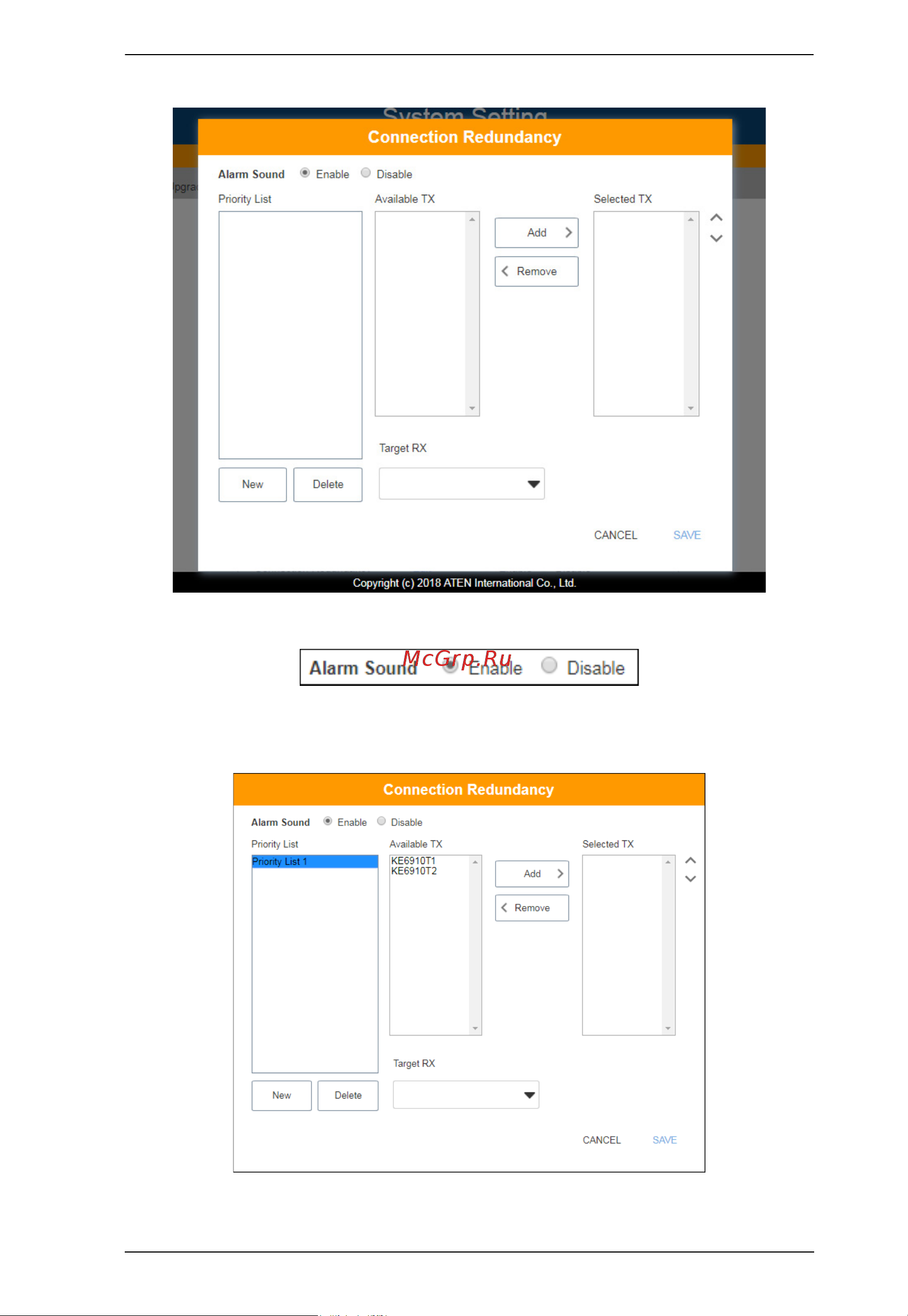

3. For Alarm Sound, click Enable.
4. To create a new list, click New. A Priority List 1 will be shown. (Click
New again to create another list.)
