Chapter 8. System Settings

171

6. Redundancy is now running on the secondary computer.

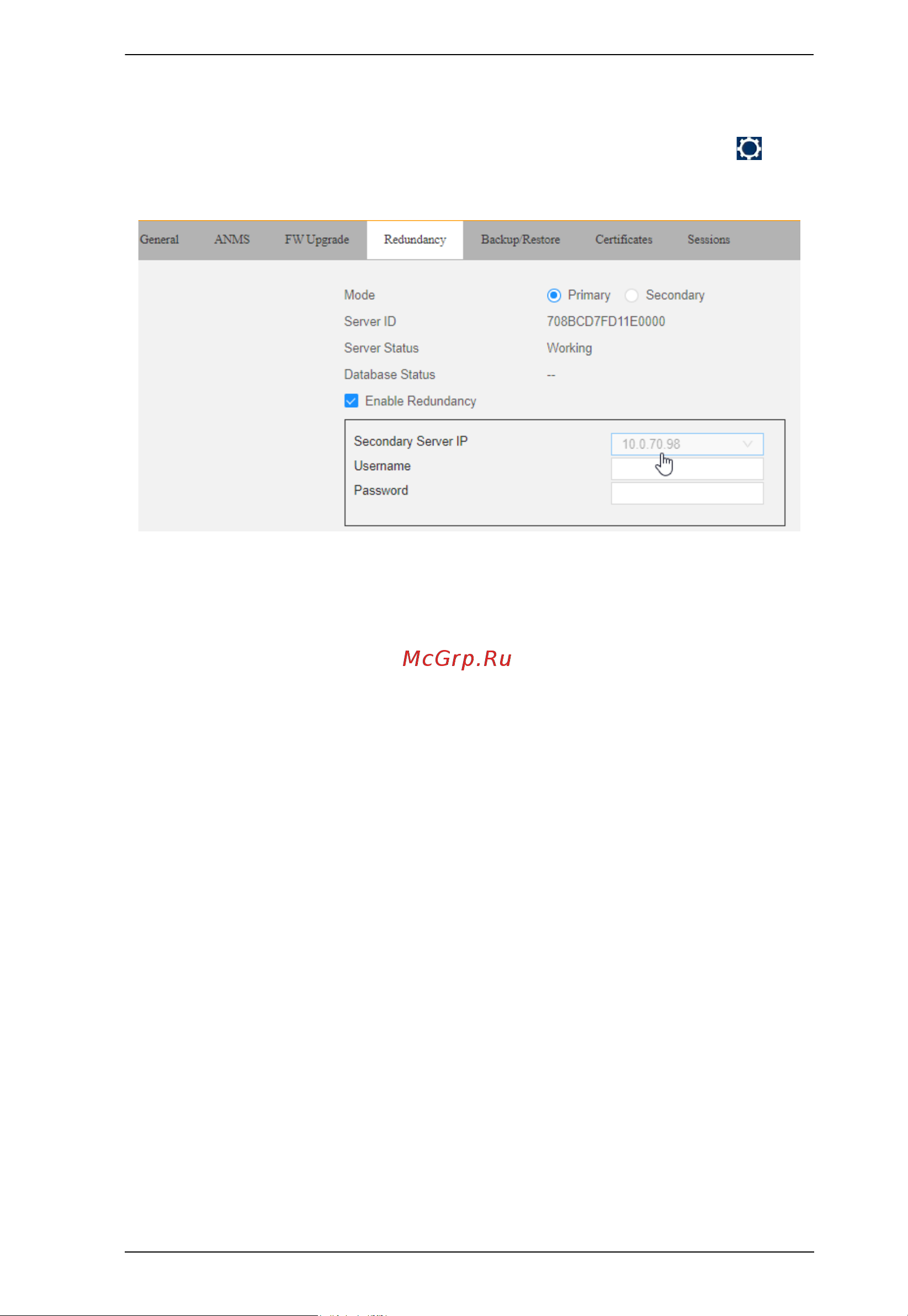

7. On the primary computer, log in to the RCM/KE Manager, click and

go to the Redundancy tab.

8. Check Enable Redundancy and select the Primary radio button.

9. Use the Secondary Server IP drop-down menu to select the secondary IP

address.

10. Enter the Username and Password of the secondary computer’s local

administrator account.

11. Click Save.

12. Information about the Redundancy status can be found in the event log

(see Log, page 153 for details).
