RCM KVM over IP Transmitter User Manual
260

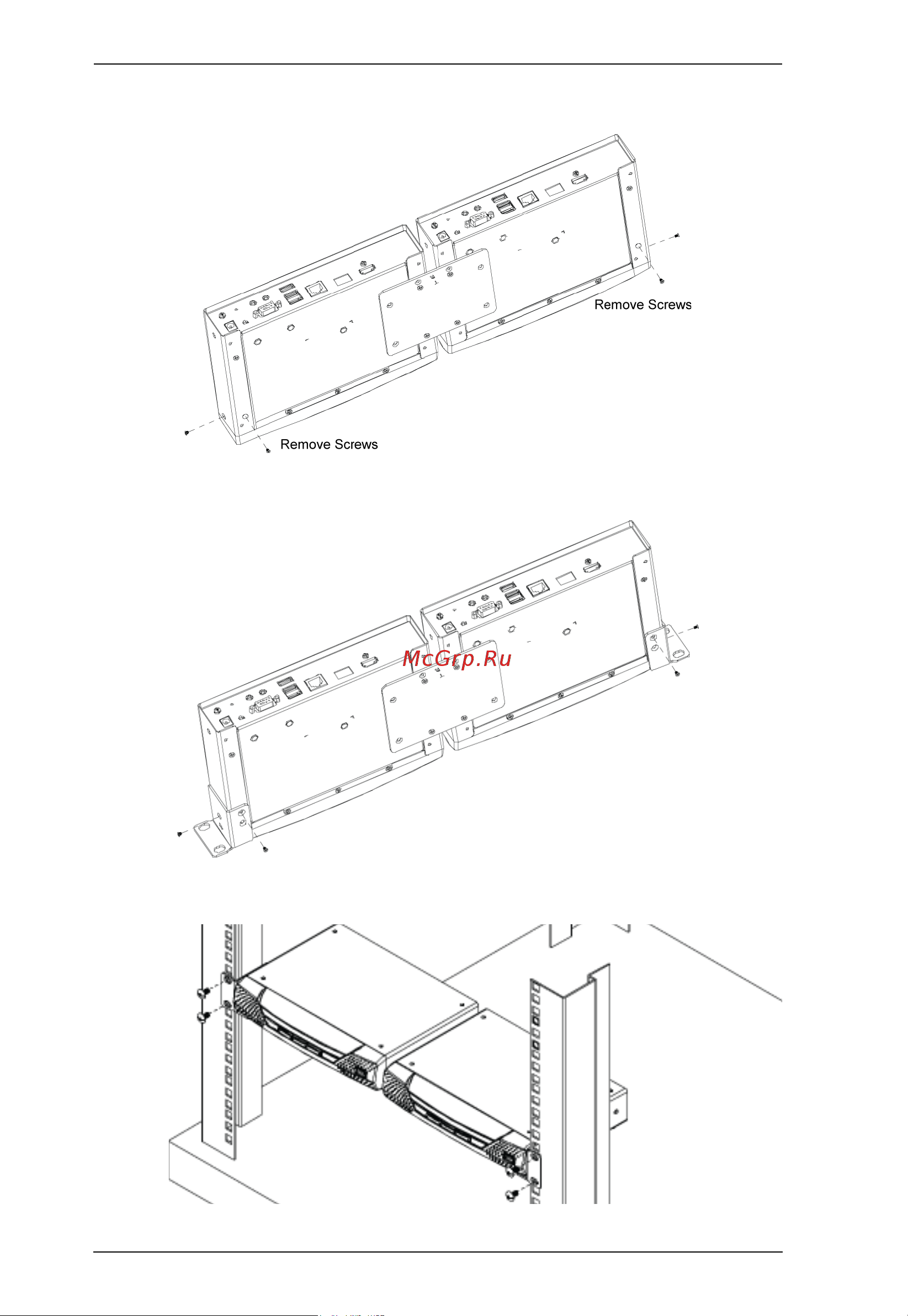

3. Remove the bottom and side screws from each unit.
4. Use the screws in step 3 to install the left and right mounting brackets.
5. Screw the mounting brackets to the rack.
